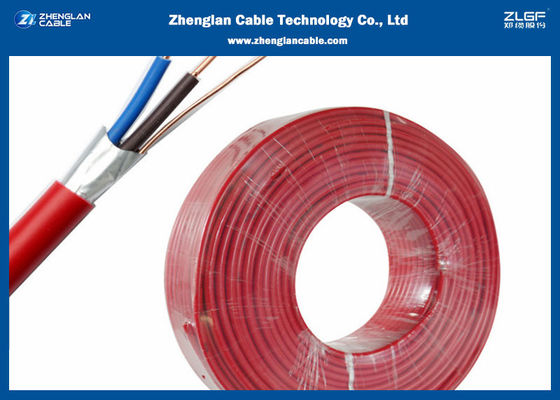

PVC Insulated Twin And Earth Cable /BVV Cable 300/500V For Home / Building/Core Number: 2 Core, 3 Core, 4 Core Or 5 Core

Product Details

Place of Origin: Henan, China

Brand Name: Zhenglan cable

Certification: 3C,ISO 9001:2015,ISO 14001:2005

Model Number: BVV Cable(300/500V) PVC insulated cables

Payment & Shipping Terms

Minimum Order Quantity: 500 meters

Packaging Details: Rolls or Customerised

Delivery Time: 7-10 working days

Payment Terms: L/C, T/T, , Western Union

Supply Ability: 5 million one year

Get Best Price
Highlight:

stranded copper wire

,

two core and earth cable

Material:
99.99% Oxygen Free Copper
Sheath:
PVC Insulated
Application:
For Home Usage Or Building
Conductor Type:
Stranded
Colour:
Standard Or Customerised
Core:
2~5
Material:
99.99% Oxygen Free Copper
Sheath:
PVC Insulated
Application:
For Home Usage Or Building
Conductor Type:
Stranded
Colour:
Standard Or Customerised
Core:
2~5
PVC Insulated Twin And Earth Cable /BVV Cable 300/500V For Home / Building/Core Number: 2 Core, 3 Core, 4 Core Or 5 Core

PVC Insulated Twin And Earth Cable /BVV Cable 300/500V For Home / Building/Core Number: 2 Core, 3 Core, 4 Core Or 5 Core



Insulated Twin And Earth Cable Application:

The wiring cable type PP is intended for dry and wet conditions, for laying either on the surface or under plaster without any special mechanic protection.





Construction:

Core number: 2core, 3 core, 4 core or 5 core

Conductor: confirms to specification GB/T3956-1997 or IEC 60228

Solid conductor class1

Stranded conductor class2

Insulation: PVC

Outer sheath: PVC





Electrical characteristics:

Rated voltage: 300/500V

Test voltage: 2000 V

Conductor working temeprature max. +70°C (under normal conditions)

Minimum bending radius:

For cable with diameter below 25mm, allowed bending radius should not be less than 4D;For cable with diameter above and including 25mm, allowed bending radius should not be less than 6D;

Operating temperatures: Mounting -5° - +40°C Operating -30° - +70°C



Core marking:

2-cores: Brown, Blue

3-cores: Brown, Yellow-green, Blue

4-cores: Brwon, Black, Grey, Yellow-green

5-cores: Brown, Black, Grey, Yellow-green, Blue

Standard: 60227 IEC10 or GB/T5023.4-2008

Packing: 100m per roll(per coil or plastic reel, as your request)



Remarks:

Flame retardant, fire resistance(adopt mica tape), low smoking and Halogen free, or other property are available.

ZR cable(flame retardant cable) is the kind of cable with PVC insulation built mixed with fire prevention additive to make it have the capability of preventing or retarding flame spread during combustion.

There are 3 grades of fire prevention available which are

Grade A It is the highest level of flame retardancy. That is, the insulation material, filling rope, fastening (inner cushion) belt/layer and sheath material used in cables are all flame retardant materials.

Grade B Except the insulation material, all other materials are flame retardant.

Grade C Only the sheath material is flame retardant

NH cable(fire resistant cable) is the kind of cable built with a layer of mica tape. Even if the plastic skin is burnt out, refractory layer will help not cause short circuit. When wiring, cut off the refractory layer at the wire head.

LSZH,LSOH,LS0H,LSFH or OHLS cable(Low smoke zero halogen cable)is cable with insulation or outer sheath built using low smoke zero halogen free material to help reduce toxic and corrosive gases produced during combustion.

Termite-proof cable is the cable built with insulation or outer sheath mixed with a kind of materials to prevent termite biting the cable.



Insulated Twin And Earth Cable Data sheet

Construction of Cable Construction of Conductor Insulation Thickness Sheath Thickness Overall Dia Min.Insulation Resistance at 70℃ Total Weght
mm² nxmm mm mm mm MΩkm Kg/kmΩ/km
2x1.5 1x1.36 0.6 1.4 8.8 0.010 117
2x2.5 1x1.78 0.7 1.4 10.0 0.009 160
2x4 1x2.26 0.8 1.4 11.4 0.009 227
2x6 1x2.7 0.8 1.4 12.2 0.007 274
2x10 1x3.5 1.0 1.6 15.6 0.007 450
2x16 7x1.75 1.0 1.6 18.4 0.005 680
2x25 7x2.20 1.2 1.6 21.6 0.005 1010
2x35 7x2.60 1.2 1.8 25.0 0.004 1388
3x1.5 1x1.38 0.6 1.4 9.1 0.010 133
3x2.5 1x1.78 0.7 1.4 10.2 0.009 189
3x4 1x2.26 0.8 1.4 11.8 0.009 270
3x6 1x2.70 0.8 1.6 13.5 0.007 258
3x10 1x3.5 1.0 1.6 16.5 0.007 568
3x16 7x1.75 1.0 1.6 19.5 0.005 837
3x25 7x2.20 1.2 1.8 24.0 0.005 1280
3x35 7x2.60 1.2 1.8 26.7 0.004 1670
4x1.5 1x1.38 0.6 1.4 9.8 0.010 159
4x2.5 1x1.78 0.7 1.4 11.4 0.009 233
4x4 1x2.26 0.8 1.6 13.5 0.009 338
4x6 1x2.70 0.8 1.6 14.4 0.007 423
4x10 1x3.5 1.0 1.6 17.3 0.007 646
4x16 7x1.75 1.0 1.6 21.8 0.005 1030
4x25 7x2.20 1.2 1.8 26.0 0.005 1590
4x35 7x2.60 1.2 1.8 29.3 0.004 2080
5x1.5 1x1.38 0.6 1.4 10.7 0.010 186
5x2.5 1x1.78 0.7 1.4 12.2 0.009 270
5x4 1x2.26 0.8 1.6 14.6 0.009 409
5x6 1x2.70 0.8 1.6 15.7 0.007 509
5x10 1x3.5 1.0 1.6 19.0 0.007 815
5x16 7x1.75 1.0 1.8 23.8 0.005 1285
5x25 7x2.20 1.2 1.8 28.7 0.005 1950
5x35 7x2.60 1.2 1.8 32.1 0.004 2610



Products show

PVC Insulated Twin And Earth Cable /BVV Cable 300/500V For Home / Building/Core Number: 2 Core, 3 Core, 4 Core Or 5 Core 0PVC Insulated Twin And Earth Cable /BVV Cable 300/500V For Home / Building/Core Number: 2 Core, 3 Core, 4 Core Or 5 Core 1
