Product Details
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: ISO 9001:2015，ISO 14001:2005
Model Number: LV Cable 4Cx50 NA 1Cx50 mm2
Payment & Shipping Terms
Minimum Order Quantity: 1000 meters
Price: Negotiable
Packaging Details: Fully wooden drum, steel wooden drum, fully steel drum or customized
Delivery Time: 15 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 16,000 KM/Year
Structure: |
AAC/XLPE+AAAC/XLPE |
Phase Cable Conductor: |
AAC |
Insulation Material: |
XLPE |
Core: |
4C |
Voltage: |
Low Voltage |
Application: |
Overhead Transmission Use |
Quality: |
100% Test |
Standard: |
IEC 60502-1 |
Port: |
Qingdao |
Color: |
Black |
Structure: |
AAC/XLPE+AAAC/XLPE |
Phase Cable Conductor: |
AAC |
Insulation Material: |
XLPE |
Core: |
4C |
Voltage: |
Low Voltage |
Application: |
Overhead Transmission Use |
Quality: |
100% Test |
Standard: |
IEC 60502-1 |
Port: |
Qingdao |
Color: |
Black |
AAC/XLPE AAAC/XLPE Aerial Overhead Insulated Cable 4Cx50 NA 1Cx50 Mm2
Application:
For aerial reticulating to residential, rural and uncleared areas where reliability, safety and low installation costs
are required.
Other benefits include: Reduction of bushfire hazards and frequency of tree lopping.
Construction:
1. Conductor: Aluminium 1350, class 2.
2. Insulation: Cross linked polyethylene XLPE.
3. Insulated neutral messenger: AAAC - All Alloy Aluminium 6201 - XLPE.
Characteristics:
Decreases energy theft, cross-linked polyethylene allows more current capacity and high insulation resistance, lower inductive reactance than with bare conductors, used in overhead distribution lines. Increased safety due to its mechanical strength and toughness of the insulation. Insulators are not necessary for installation. Resistance to abrasion, weather and sunlight.
AAC/XLPE AAAC/XLPE Aerial Overhead Insulated Cable 4Cx50 NA 1Cx50 Mm2 parameters:
| CAAI 0,6/1 kV AAAC Covered Neutral with Public Lighting | |||||||||
| Nb. of cores | Phase Cond. Cross Section [mm²] | N° aluminium wires |
Phase Cond. Diam. [mm] | Min. insulation thick. [mm] | Public lighting | MIn.Insulat.Thick.Pub.Light. [mm] | Neutral Cond. section [mm²] | Nom. outer diam(mm) | Approx. weight [kg/km] |
| 1 | 16 | 7 | 5 | 1.14 | 1 x 16 | 1.14 | 25 | 17.2 | 235 |
| 2 | 16 | 7 | 5 | 1.14 | 1 x 16 | 1.14 | 25 | 18.6 | 303 |
| 2 | 25 | 7 | 5.8 | 1.14 | 1 x 16 | 1.14 | 25 | 22.7 | 358 |
| 2 | 25 | 7 | 5.8 | 1.14 | 2 x 16 | 1.14 | 25 | 22.5 | 425 |
| 2 | 35 | 7 | 6.9 | 1.14 | 1 x 16 | 1.14 | 25 | 24.4 | 420 |
| 2 | 35 | 7 | 6.9 | 1.14 | 1 x 35 | 1.14 | 25 | 24.4 | 448 |
| 2 | 35 | 7 | 6.9 | 1.14 | 2 x 16 | 1.14 | 25 | 24.7 | 488 |
| 2 | 50 | 19 | 8.1 | 1.52 | 1 x 25 | 1.14 | 35 | 29.1 | 583 |
| 2 | 50 | 19 | 8.1 | 1.52 | 2 x 16 | 1.14 | 50 | 30.4 | 688 |
| 2 | 70 | 19 | 9.8 | 1.52 | 1 x 25 | 1.14 | 50 | 34.3 | 786 |
| 3 | 16 | 7 | 5 | 1.14 | 1 x 16 | 1.14 | 25 | 20.6 | 370 |
| 3 | 25 | 7 | 5.8 | 1.14 | 1 x 16 | 1.14 | 25 | 22.7 | 453 |
| 3 | 25 | 7 | 5.8 | 1.14 | 2 x 16 | 1.14 | 25 | 25.6 | 520 |
| 3 | 35 | 7 | 6.9 | 1.14 | 1 x 16 | 1.14 | 25 | 24.4 | 547 |
| 3 | 35 | 7 | 6.9 | 1.14 | 1 x 35 | 1.14 | 25 | 24.4 | 574 |
| 3 | 35 | 7 | 6.9 | 1.14 | 1 x 25 | 1.14 | 25 | 24.7 | 606 |
| 3 | 35 | 7 | 6.9 | 1.14 | 1 x 25 | 1.14 | 35 | 25.7 | 608 |
| 3 | 35 | 7 | 6.9 | 1.14 | 2 x 16 | 1.14 | 25 | 27 | 614 |
| 3 | 35 | 7 | 6.9 | 1.14 | 2 x 25 | 1.14 | 25 | 27 | 669 |
| 3 | 50 | 19 | 8.1 | 1.52 | 1 x 16 | 1.14 | 35 | 29.1 | 733 |
| 3 | 50 | 19 | 8.1 | 1.52 | 1 x 25 | 1.14 | 35 | 29.1 | 760 |
| 3 | 50 | 19 | 8.1 | 1.52 | 1 x 35 | 1.14 | 35 | 29.1 | 791 |
| 3 | 50 | 19 | 8.1 | 1.52 | 2 x 25 | 1.14 | 35 | 31.7 | 855 |
| 3 | 70 | 19 | 9.8 | 1.52 | 1 x 16 | 1.14 | 50 | 34.3 | 1005 |
| 3 | 70 | 19 | 9.8 | 1.52 | 2 x 25 | 1.14 | 50 | 37.9 | 1127 |
| 3 | 95 | 19 | 11.5 | 1.52 | 1 x 16 | 1.14 | 50 | 37.2 | 1252 |
| 3 | 95 | 19 | 11.5 | 1.52 | 1 x 16 | 1.14 | 50 | 40.3 | 1319 |
| 3 | 95 | 19 | 11.5 | 1.52 | 1 x 16 | 1.14 | 70 | 38.9 | 1319 |
| 3 | 95 | 19 | 11.5 | 1.52 | 2 x 25 | 1.14 | 50 | 40.3 | 1374 |
| 3 | 120 | 19 | 12.8 | 2.03 | 1 x 25 | 1.14 | 50 | 41.0 | 1565 |
| 3 | 120 | 19 | 12.8 | 2.03 | 1 x 35 | 1.14 | 50 | 41.0 | 1596 |
| 3 | 120 | 19 | 12.8 | 2.03 | 1 x 16 | 1.14 | 70 | 42.7 | 1604 |
| 3 | 120 | 19 | 12.8 | 2.03 | 2 x 16 | 1.14 | 70 | 46.1 | 1672 |
| 3 | 120 | 19 | 12.8 | 2.03 | 2 x 50 | 1.52 | 70 | 46.1 | 1733 |
| 3 | 120 | 19 | 12.9 | 2.03 | 2 x 25 | 1.14 | 70 | 46.1 | 1890 |

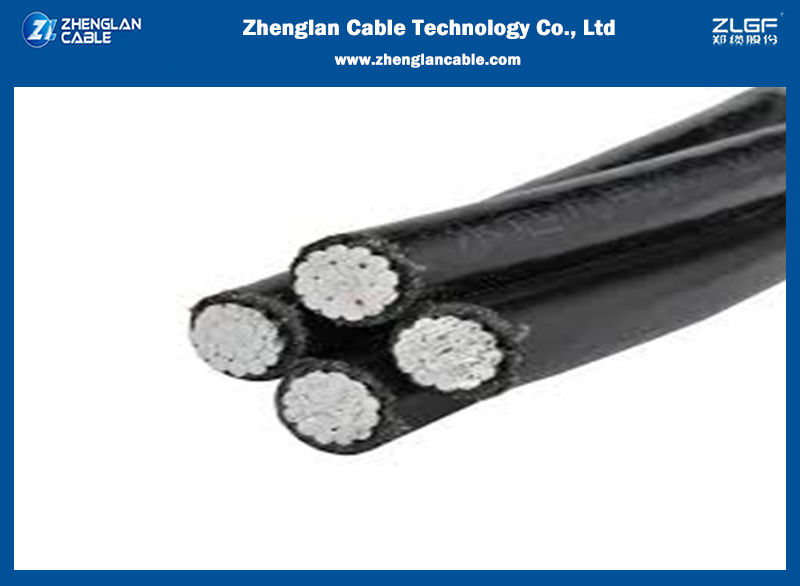

AAC/XLPE AAAC/XLPE Aerial Overhead Insulated Cable 4Cx50 NA 1Cx50 Mm2 pictures:
About Zhenglan Cable:
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
FAQ:
1. Is your company a factory or a trade company?
Factory, more than 20 years in China
2. How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
3. What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
4. What’s the delivery time?
Sample order needs 3~5 days.
Formal order depends on the quantity, usually it needs 15 working days after get your payment.
5. What is your MOQ?
Generally it is 5000m.
