Product Details
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: ISO 9001:2015，ISO 14001:2005; CCC
Model Number: 1kv single core xlpe covered cable aerial bundled cable overhead insulated cable AAC/XLPE 1x25sqmm
Payment & Shipping Terms
Minimum Order Quantity: 1000m
Price: Negotiable
Packaging Details: Wooden drum, iron wooden drum or as required
Delivery Time: 10-20 days
Payment Terms: L/C, T/T
Supply Ability: 15,000 KM/Year
Insulation Material: |
XLPE |
Conductor: |
Aluminum |
Standard: |
GB/T 12527-2008, IEC60502-1, NFC33209 |
Structure: |
AAC/XLPE |
Voltage: |
0.6/1KV |
Port: |
Qingdao Or Shanghai |
Insulation Material: |
XLPE |
Conductor: |
Aluminum |
Standard: |
GB/T 12527-2008, IEC60502-1, NFC33209 |
Structure: |
AAC/XLPE |
Voltage: |
0.6/1KV |
Port: |
Qingdao Or Shanghai |
1kv single core xlpe covered cable aerial bundled cable overhead insulated cable AAC/XLPE 1x25sqmm
Construction: Al/XLPE
(1) Conductor: Stranded compacted circular aluminium
(2) Insulation: XLPE
Characteristics:
- Rated voltage (Uo/U): 0.6/1(1.2)kV
- Max. conductor temperature in normal operation: 90oC
- Max. conductor temperature in
short-circuit for 5s max duration: 250oC
- Min. bend radius: 8 x D (D: overall diameter of cable)
1kv single core xlpe covered cable aerial bundled cable overhead insulated cable AAC/XLPE 1x25sqmm BS 215: Part 1 BS 6485
| Code Name | Size AWG or kcmil | No. of Wires | Insulation Thickness | Nominal Diameter | Rated Strength kg | Nominal Weight | Ampacity A | ||||
| Bare | OD | Aluminum kg/km | Total | ||||||||
| mm | mm | mm | LDPE | HDPE | XLPE | ||||||
| kg/km | kg/km | kg/km | |||||||||
| AAC | |||||||||||
| Plum | 6 | 7 | 0.762 | 4.674 | 6.198 | 255 | 36.61 | 50.66 | 51.27 | 51.27 | 100 |
| Apricot | 4 | 7 | 0.762 | 5.715 | 7.239 | 400 | 58.19 | 75.57 | 76.33 | 76.33 | 135 |
| Peach | 2 | 7 | 1.143 | 7.417 | 9.703 | 612 | 92.56 | 126.09 | 127.55 | 127.55 | 180 |
| Nectarine | 1 | 7 | 1.143 | 8.433 | 11.481 | 789 | 116.67 | 167.31 | 169.52 | 169.52 | 210 |
| Quince | 1/0 | 7 | 1.524 | 9.347 | 12.395 | 903 | 147.48 | 203.7 | 206.14 | 206.14 | 240 |
| Haw | 1/0 | 19 | 1.524 | 9.474 | 12.522 | 980 | 147.48 | 204.49 | 206.96 | 206.96 | 240 |
| Orange | 2/0 | 7 | 1.524 | 11.786 | 14.834 | 1139 | 186.02 | 257.9 | 261.02 | 261.02 | 280 |
| Ironwood | 2/0 | 19 | 1.524 | 10.643 | 13.691 | 1211 | 186.02 | 250.41 | 253.21 | 253.21 | 280 |
| Fig | 3/0 | 7 | 1.524 | 13.259 | 16.307 | 1377 | 233.64 | 315.53 | 319.08 | 319.08 | 320 |
| Lemon | 3/0 | 19 | 1.524 | 11.938 | 14.986 | 1501 | 233.64 | 306.53 | 309.7 | 309.7 | 320 |
| Olive | 4/0 | 7 | 1.524 | 13.259 | 16.307 | 1728 | 296.14 | 378.04 | 381.58 | 381.58 | 370 |
| Pomegranate | 4/0 | 19 | 1.524 | 13.411 | 16.459 | 1823 | 296.14 | 379.09 | 382.69 | 382.69 | 370 |
| Sassafras | 250 | 19 | 1.524 | 14.58 | 17.628 | 2043 | 348.68 | 439.88 | 443.84 | 443.84 | 420 |
| Mulberry | 266.8 | 19 | 1.524 | 14.605 | 17.653 | 2182 | 372.19 | 463.59 | 467.55 | 467.55 | 460 |
| Basswood | 300 | 19 | 1.524 | 15.951 | 18.999 | 2404 | 419.66 | 520.91 | 525.3 | 525.3 | 478 |
| Annona | 336.4 | 19 | 1.524 | 16.916 | 19.964 | 2697 | 469.51 | 578.04 | 582.75 | 582.75 | 495 |
| Chinquapin | 350 | 19 | 1.524 | 17.211 | 20.269 | 2790 | 488.12 | 598.98 | 603.79 | 603.79 | 525 |
| Mollis | 397.5 | 19 | 2.032 | 18.39 | 22.454 | 3123 | 555.08 | 707.29 | 713.88 | 713.88 | 550 |
| Sumac | 450 | 37 | 2.032 | 19.609 | 23.673 | 3719 | 628 | 791.79 | 798.89 | 798.89 | 600 |
| Huckleberry | 477 | 37 | 2.032 | 20.193 | 24.257 | 3810 | 665.21 | 834.63 | 841.98 | 841.98 | 610 |

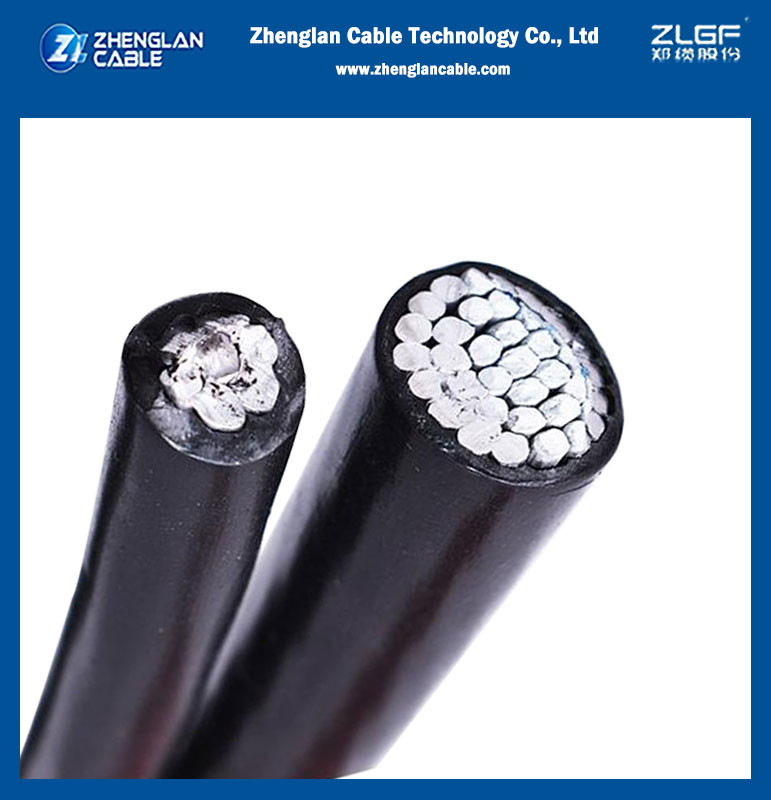

1kv single core xlpe covered cable aerial bundled cable overhead insulated cable AAC/XLPE 1x25sqmm Products images:
1kv single core xlpe covered cable aerial bundled cable overhead insulated cable AAC/XLPE 1x25sqmm package
Why Choose Zhenglan Cable:
FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Depends on the cable size and the material consumed.
