Product Details
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: ISO 9001:2015，ISO 14001:2005; CCC
Model Number: 1kv PVC covered overhead insulated cable AAC/PVC 1x25sqmm DIN 48201: Part 5 BS 6485
Payment & Shipping Terms
Minimum Order Quantity: 1000m
Price: Negotiable
Packaging Details: Wooden drum, iron wooden drum or as required
Delivery Time: 10-20 days
Payment Terms: L/C, T/T
Supply Ability: 15,000 KM/Year
Insulation Material: |
XLPE |
Conductor: |
Aluminum |
Standard: |
DIN 48201: Part 5 BS 6485 |
Structure: |
AAC/XLPE |
Voltage: |
0.6/1KV |
Port: |
Qingdao Or Shanghai |
Insulation Material: |
XLPE |
Conductor: |
Aluminum |
Standard: |
DIN 48201: Part 5 BS 6485 |
Structure: |
AAC/XLPE |
Voltage: |
0.6/1KV |
Port: |
Qingdao Or Shanghai |
1kv PVC covered overhead insulated cable AAC/PVC 1x25sqmm DIN 48201: Part 5 BS 6485
Conductors are aluminum alloy 6201-T81, 1350-H19, or ACSR, concentrically stranded and covered for weatherproofing with polyethylene (PE), high-density polyethylene (HDPE), or cross-linked polyethylene (XLPE).
1kv PVC covered overhead insulated cable AAC/PVC 1x25sqmm DIN 48201: Part 5 BS 6485
| Nominal Area | Calculated Area | Wires | Approx. Overall Diameter mm | Nominal Breaking Load | Max. DC Resistance at 20°C Ω/km | Conductor Weight kg/km | Overall Diameter mm | Total Weight kg/km | |
| mm2 | mm2 | No. | Diameter mm | kN | |||||
| 16 | 15.89 | 7 | 1.7 | 5.1 | 2.84 | 1.802 | 44 | 7.3 | 77 |
| 25 | 24.25 | 7 | 2.1 | 6.3 | 4.17 | 1.181 | 67 | 8.5 | 108 |
| 35 | 34.36 | 7 | 2.5 | 7.5 | 5.78 | 0.8317 | 94 | 9.7 | 143 |
| 50 | 49.48 | 7 | 3 | 9 | 7.94 | 0.5787 | 135 | 11.2 | 196 |
| 50 | 48.35 | 19 | 1.8 | 9 | 8.45 | 0.595 | 133 | 11.2 | 187 |
| 70 | 65.81 | 19 | 2.1 | 10.5 | 11.32 | 0.4371 | 181 | 12.7 | 243 |
| 95 | 93.27 | 19 | 2.5 | 12.5 | 15.68 | 0.3085 | 256 | 14.7 | 333 |
| 120 | 117 | 19 | 2.8 | 14 | 18.78 | 0.2459 | 322 | 16.2 | 410 |
| 150 | 147.1 | 37 | 2.25 | 15.7 | 25.3 | 0.196 | 406 | 17.9 | 498 |
| 185 | 181.6 | 37 | 2.5 | 17.5 | 30.54 | 0.1587 | 501 | 19.7 | 606 |
| 240 | 242.5 | 61 | 2.25 | 20.2 | 39.51 | 0.1191 | 670 | 22.4 | 787 |
| 300 | 299.4 | 61 | 2.5 | 22.5 | 47.7 | 0.0965 | 827 | 24.7 | 959 |
| 400 | 400.1 | 61 | 2.89 | 26 | 60.86 | 0.0722 | 1105 | 28.2 | 1262 |
| 500 | 499.8 | 61 | 3.23 | 29.1 | 74.67 | 0.0578 | 1381 | 31.3 | 1561 |

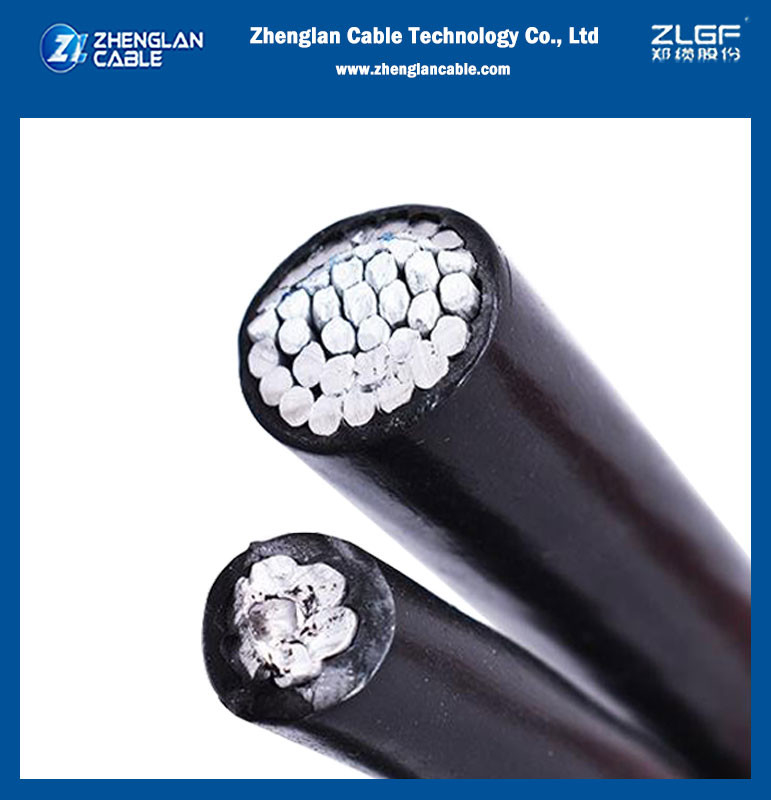

1kv PVC covered overhead insulated cable AAC/PVC 1x25sqmm DIN 48201: Part 5 BS 6485 Products images:
1kv PVC covered overhead insulated cable AAC/PVC 1x25sqmm DIN 48201: Part 5 BS 6485 package
Why Choose Zhenglan Cable:
FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Depends on the cable size and the material consumed.
