Product Details
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: ISO 9001:2015，ISO 14001:2005; CCC
Model Number: 1kv aerial bundled cable AAC/XLPE 3x25+1x16 overhead insulated cable NTP370.254/IEC60502-1
Payment & Shipping Terms
Minimum Order Quantity: 1000m
Price: Negotiable
Packaging Details: Wooden drum, iron wooden drum or as required
Delivery Time: 10 days
Payment Terms: L/C, T/T
Supply Ability: 15,000 KM/Year
Insulation Material: |
XLPE |
Phase Cable: |
Aluminum |
Neutral Cable: |
Aluminum Alloy |
Street Lighting Cable: |
Aluminum |
Standard: |
GB/T 12527-2008, IEC60502-1, NFC33209 |
Structure: |
AAC/XLPE+NA AAAC/XLPE |
Voltage: |
0.6/1KV |
Port: |
Qingdao Or Shanghai |
Insulation Material: |
XLPE |
Phase Cable: |
Aluminum |
Neutral Cable: |
Aluminum Alloy |
Street Lighting Cable: |
Aluminum |
Standard: |
GB/T 12527-2008, IEC60502-1, NFC33209 |
Structure: |
AAC/XLPE+NA AAAC/XLPE |
Voltage: |
0.6/1KV |
Port: |
Qingdao Or Shanghai |
1kv aerial bundled cable AAC/XLPE 3x25+1x16 overhead insulated cable NTP370.254/IEC60502-1
Application:
Aerial Bundled Cable is designed for residential and rural areas for reducing the bushfire hazards. Used primarily for overhead secondary distribution lines.The XLPE covering contains a high level of carbon black for UV resistance. It is designed for where reliability, safety and low installation cost are required, but it is only for short spans due to increased weight.
Structure
Phase Conductor material: aluminum;
Insulation material: XLPE;
Neutral messenger : AAAC
Electrical characteristics
Rated Voltage Uo/U (Um):0.6/1kv
Dielectric strength: 4.0 kV
Time of application Dielectric strength core to screen DC: 5 min.
Usage characteristics
1kv aerial bundled cable AAC/XLPE 3x25+1x16 overhead insulated cable NTP370.254/IEC60502-1 Parameters:
| Nb. of cor es | Phase Cond. Cross Section [mm²] | N° aluminium wires |
Phase conductor diameter(mm) | Min Insulation thickness(mm) | Neutral conductor | MIn.Insulat.Thick of Neutral messenger(mm) | Nom. outer diam(mm) | Approx. weight [kg/km] | |
| sectional area(mm2) | conductor diameter(mm) | ||||||||
| 3 | 16 | 7 | 5 | 1.15 | 25 | 6.4 | 1.15 | 18.7 | 304 |
| 3 | 25 | 7 | 5.8 | 1.15 | 25 | 6.4 | 1.15 | 20.2 | 386 |
| 3 | 25 | 7 | 5.8 | 1.15 | 35 | 7.6 | 1.15 | 20.8 | 420 |
| 3 | 35 | 7 | 6.9 | 1.15 | 25 | 6.4 | 1.15 | 22.2 | 480 |
| 3 | 50 | 19 | 8.1 | 1.53 | 35 | 7.6 | 1.15 | 26.7 | 666 |
| 3 | 70 | 19 | 9.8 | 1.53 | 50 | 9.1 | 1.53 | 31.2 | 939 |
| 3 | 70 | 19 | 9.8 | 1.53 | 70 | 10.7 | 1.53 | 32.0 | 1006 |
| 3 | 95 | 19 | 11.5 | 1.53 | 50 | 9.1 | 1.53 | 34.4 | 1186 |
| 3 | 95 | 19 | 11.5 | 1.53 | 70 | 10.7 | 1.53 | 35.3 | 1253 |
| 3 | 120 | 19 | 12.8 | 2.04 | 70 | 10.7 | 1.53 | 39.7 | 1539 |
| 3 | 185 | 37 | 16 | 2.04 | 50 | 9.1 | 1.53 | 45.0 | 2074 |
| 3 | 240 | 37 | 18.4 | 2.04 | 50 | 9.1 | 1.53 | 49.4 | 2591 |

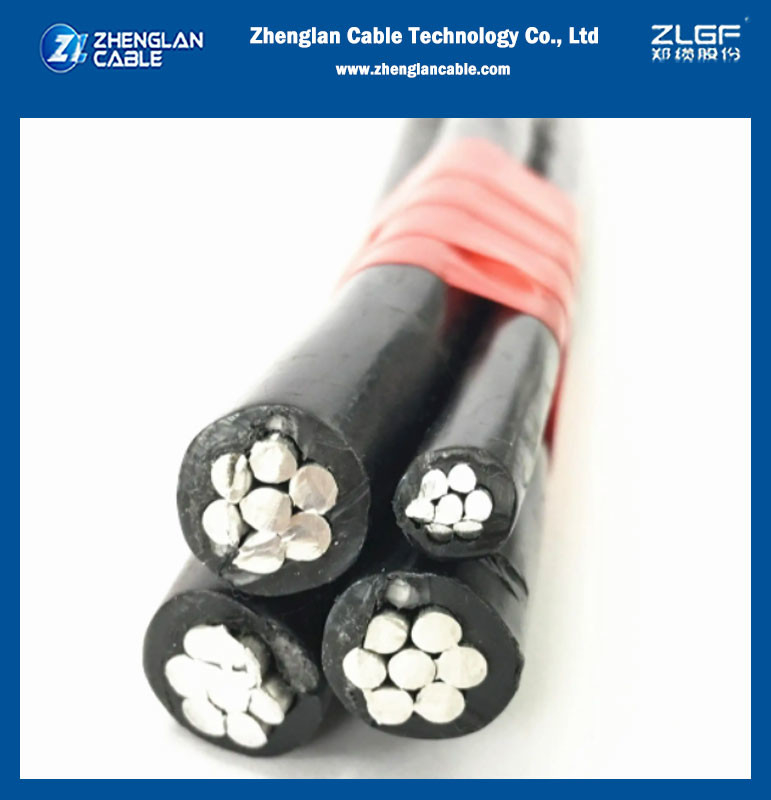

1kv aerial bundled cable AAC/XLPE 3x25+1x16 overhead insulated cable NTP370.254/IEC60502-1 Products images:
Why Choose Zhenglan Cable:
FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.
