Product Details
Place of Origin: Henan province, China
Brand Name: Zhenglan Cable
Certification: ISO 9001:2020，ISO 14001:2020, ISO45001-2020
Model Number: Bare AAAC conductor all aluminum alloy conductor 6201-T81 Alliance(7/4.77mm) Overhead use
Payment & Shipping Terms
Minimum Order Quantity: 3tons
Price: Negotiable
Packaging Details: Wooden drum, Iron wooden drum, or customized
Delivery Time: 15-30 days
Payment Terms: L/C, T/T,, Western Union
Supply Ability: 20tons/day
Material: |
Aluminium Alloy 6201-T81 |
Size: |
Alliance(7/4.77mm) |
Quality: |
ASTMB399/399M |
Port: |
Qingdao, Tianjin |
Conductivity: |
52.2% |
Material: |
Aluminium Alloy 6201-T81 |
Size: |
Alliance(7/4.77mm) |
Quality: |
ASTMB399/399M |
Port: |
Qingdao, Tianjin |
Conductivity: |
52.2% |

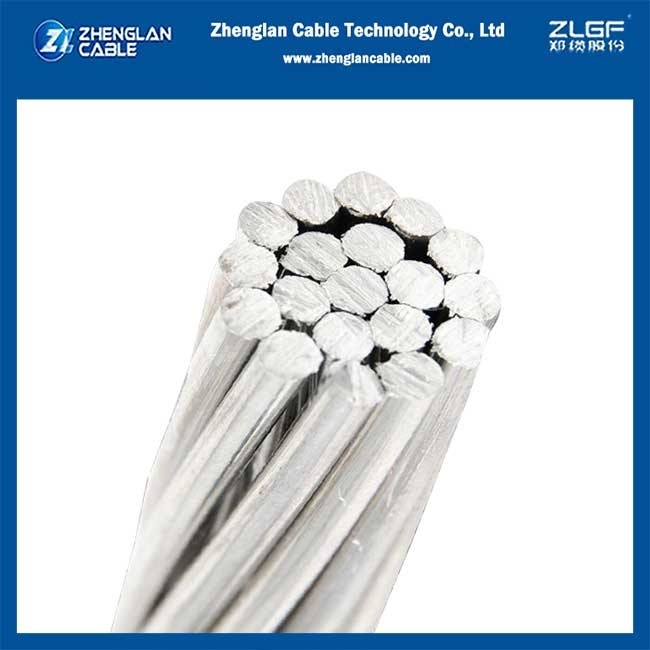

Bare AAAC conductor all aluminum alloy conductor 6201-T81 Alliance(7/4.77mm) Overhead use
APPLICATION
AAAC is mainly used as bare overhead transmission cable and as primary and secondary distribution cable. It is also suitable for laying across basins, rivers and valleys where special geographical teatures exist.
These conductors are usually in occasions where AAC conductors do not provide the required strength and ACSR conductors are not required or suitable. Applications range from extra high voltage (EHV) transmission lines to sub-service spans at distribution or utilization voltages on private premises.
CONSTRUCTION
Bare aluminum alloy conductors made of 6201 Aluminum alloy are wrapped helically around a central wire.
ASTM B-398: Aluminum Alloy 6201-T81 aluminum alloy conductors
ASTM B-399: Concentric Lay stranded 6201-T81 aluminum alloy conductors
ELECTRICAL PROPERTIES
| density@20ºC | 2.70 kg/dm |
| Temperature Coefficient@20°C | 0.00360 (°C) |
| resistivity@20°C | 0.0326 Ohms mm2/m |
| linear Expansivity | 23 x10-6 (°C) |
SERVICE CONDITIONS
| Ambient Temperature | -5°C - 50°C |
| Wind Pressure | 80 – 130kg/m |
| Seismic Acceleration | 0.12 - 0.05g |
| Isokeraunic level | 10 – 18 |
| relative Humidity | 5 – 100% |
Bare AAAC conductor all aluminum alloy conductor 6201-T81 Alliance(7/4.77mm) Overhead use technical data
| Code Name | Total Area | Stranding | Conductor Nominal diameter |
Nominal Weight | Rated Strength | Max DC resistance at 20 oC |
|
| AWG or MCM | mm2 | No / mm | mm | kg/km | kN | Ω /km | |
| Akron | 30.58 | 15.52 | 7 x 1.68 | 5.04 | 43 | 4.92 | 2.1588 |
| Alton | 48.69 | 24.71 | 7 x 2.12 | 6.36 | 68 | 7.83 | 1.3557 |
| Ames | 77.47 | 39.19 | 7 x 2.67 | 8.01 | 108 | 12.42 | 0.8547 |
| Azusa | 123.3 | 62.44 | 7 x 3.37 | 10.11 | 171 | 18.88 | 0.5365 |
| Anaheim | 155.4 | 78.55 | 7 x 3.78 | 11.34 | 216 | 23.75 | 0.4264 |
| Amherst | 195.7 | 99.30 | 7 x 4.25 | 12.75 | 272 | 30.03 | 0.3373 |
| Alliance | 246.9 | 125.10 | 7 x 4.77 | 14.31 | 343 | 37.83 | 0.2678 |
| Butte | 312.8 | 158.60 | 19 x 3.26 | 16.30 | 435 | 46.46 | 0.2112 |
| Canton | 394.5 | 199.90 | 19 x 3.66 | 18.30 | 548 | 58.56 | 0.1676 |
| Cairo | 465.4 | 236.40 | 19 x 3.98 | 19.90 | 649 | 69.25 | 0.1417 |
| Darien | 559.5 | 283.57 | 19 x 4.36 | 21.80 | 778 | 83.10 | 0.1181 |
| Elgin | 652.6 | 331.00 | 19 x 4.71 | 23.55 | 908 | 96.98 | 0.1012 |
| Flint | 740.8 | 374.50 | 37 x 3.59 | 25.13 | 1028 | 107.36 | 0.0894 |
| Greeley | 927.2 | 469.60 | 37 x 4.02 | 28.14 | 1289 | 134.62 | 0.0713 |
Bare AAAC conductor all aluminum alloy conductor 6201-T81 Alliance(7/4.77mm) Overhead use test equipment
Why you choose us?
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.
