Product Details
Place of Origin: Henan, CN
Brand Name: Zhenglan Cable
Certification: ISO 9001, ISO 14001; ISO45001
Model Number: Aerial bundled cable service drop cable Barnacles 2x4AWG+1x4AWG AAC/XLPE, AAAC neutral
Payment & Shipping Terms
Minimum Order Quantity: 5000m
Price: Negotiable
Packaging Details: Wooden drum, iron wooden drum depends on actual situation
Delivery Time: 15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15,000 KM/Year
Insulation: |
XLPE 90℃ |
Phase Conductor: |
Aluminum |
Neutral Conductor: |
Bare AAAC |
Structure: |
AAC/XLPE+AAAC |
Voltage: |
0.6/1KV |
Port: |
Qingdao Or Shanghai |
Insulation: |
XLPE 90℃ |
Phase Conductor: |
Aluminum |
Neutral Conductor: |
Bare AAAC |
Structure: |
AAC/XLPE+AAAC |
Voltage: |
0.6/1KV |
Port: |
Qingdao Or Shanghai |
Aerial bundled cable service drop cable Barnacles 2x4AWG+1x4AWG AAC/XLPE, AAAC neutral
Application:
Aerial bundled cable service drop cable Barnacles 2x4AWG+1x4AWG AAC/XLPE, AAAC neutral is suitable for use as drop cable from a pole mounted transformer to the service entrance of a structure, or as secondary distribution between poles. The cable should be limited to 600V phase to phase and not exceed 90˚C.
Aerial bundled cable service drop cable Barnacles 2x4AWG+1x4AWG AAC/XLPE, AAAC neutral Structure
Phase cable Conductor material: aluminum;
Phase cable Insulation material: XLPE;
Neutral conductor material: AAAC
Neutral conductor insulation: none
Aerial bundled cable service drop cable Barnacles 2x4AWG+1x4AWG AAC/XLPE, AAAC neutral Parameters:
| Code Name | Phase Conductor | Bare Neutral Messenger | Weight/kft. (lbs.) | Allowable Ampacities* | ||||||
| Size | Stranding | Covering Thickness |
Size | Stranding | Rated Strength (lbs.) |
Poly | XLP | Poly | XLP | |
| TRIPLEX SERVICE DROP – 6201 ALLOY NEUTRAL MESSENGER | ||||||||||
| Minex | 6 | 1 | 45 | 6 | 7 | 1110 | 101 | 102 | 70 | 85 |
| Hippa | 6 | 7 | 45 | 6 | 7 | 1110 | 105 | 107 | 70 | 85 |
| Artemia | 4 | 1 | 45 | 6 | 7 | 1110 | 132 | 134 | 90 | 115 |
| Prawn | 4 | 1 | 45 | 4 | 7 | 1760 | 152 | 154 | 90 | 115 |
| Crab | 4 | 7 | 45 | 6 | 7 | 1110 | 141 | 144 | 90 | 115 |
| Barnacles | 4 | 7 | 45 | 4 | 7 | 1760 | 157 | 160 | 90 | 115 |
| Solaster | 2 | 7 | 45 | 4 | 7 | 1760 | 212 | 216 | 120 | 150 |
| Shrimp | 2 | 7 | 45 | 2 | 7 | 2800 | 238 | 243 | 120 | 150 |
| Sandcrab | 1/0 | 7 | 60 | 2 | 7 | 2800 | 341 | 348 | 160 | 205 |
| Gammarus | 1/0 | 7 | 60 | 1/0 | 7 | 4460 | 384 | 390 | 160 | 205 |
| Echinus | 1/0 | 19 | 60 | 2 | 7 | 2800 | 336 | 342 | 160 | 205 |
| Leda | 1/0 | 19 | 60 | 1/0 | 7 | 4460 | 378 | 384 | 160 | 205 |
| Dungenese | 2/0 | 7 | 60 | 2/0 | 7 | 5390 | 474 | 481 | 185 | 235 |
| Cyclops | 2/0 | 19 | 60 | 2/0 | 7 | 5390 | 467 | 473 | 185 | 235 |
| Fulgar | 3/0 | 19 | 60 | 1/0 | 7 | 4460 | 518 | 525 | 215 | 275 |
| Flustra | 3/0 | 19 | 60 | 3/0 | 7 | 6790 | 588 | 596 | 215 | 275 |
| Arca | 4/0 | 19 | 60 | 2/0 | 7 | 5390 | 632 | 640 | 245 | 315 |
| Lepas | 4/0 | 19 | 60 | 4/0 | 7 | 8560 | 716 | 725 | 245 | 315 |

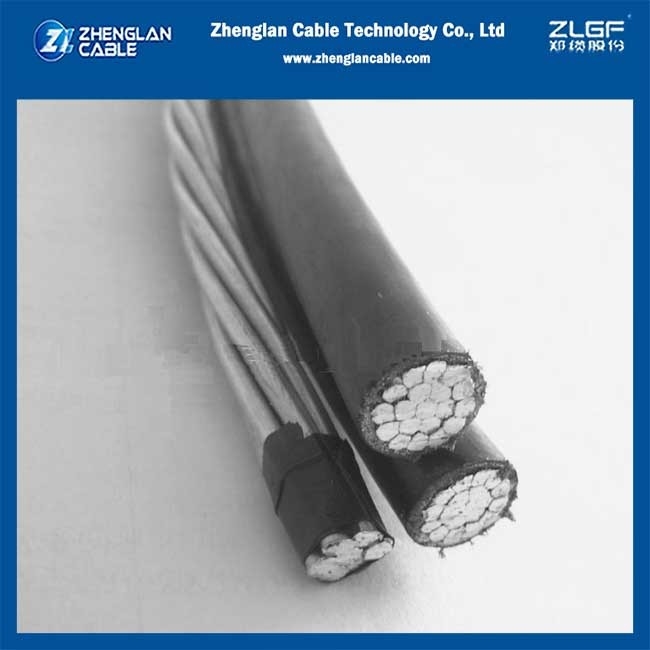

Aerial bundled cable service drop cable Barnacles 2x4AWG+1x4AWG AAC/XLPE, AAAC neutral Products images:
Why Choose Zhenglan Cable:
Aerial bundled cable service drop cable Barnacles 2x4AWG+1x4AWG AAC/XLPE, AAAC neutral FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.
