Product Details
Place of Origin: Wuzhi, Henan, CN
Brand Name: Zhenglan Cable
Certification: ISO 9001, ISO14001, ISO45001
Model Number: Bare AAAC Azusa conductor all aluminum conductor bare aluminum cable ASTM B399/399M
Payment & Shipping Terms
Minimum Order Quantity: 3tons
Price: Negotiable
Packaging Details: Fully wooden drum, iron wood drum
Delivery Time: 15 working days
Payment Terms: L/C, T/T,, Western Union
Supply Ability: 15tons/day
Material: |
Aluminium Alloy 6201 |
Size: |
62.44mm2 |
Quality: |
BS Standard, ASTM |
Application: |
Overhead Use |
Brand: |
Zhenglan Cable |
Port: |
Tianjin Port, Qingdao Port, Shanghai Port |
Material: |
Aluminium Alloy 6201 |
Size: |
62.44mm2 |
Quality: |
BS Standard, ASTM |
Application: |
Overhead Use |
Brand: |
Zhenglan Cable |
Port: |
Tianjin Port, Qingdao Port, Shanghai Port |

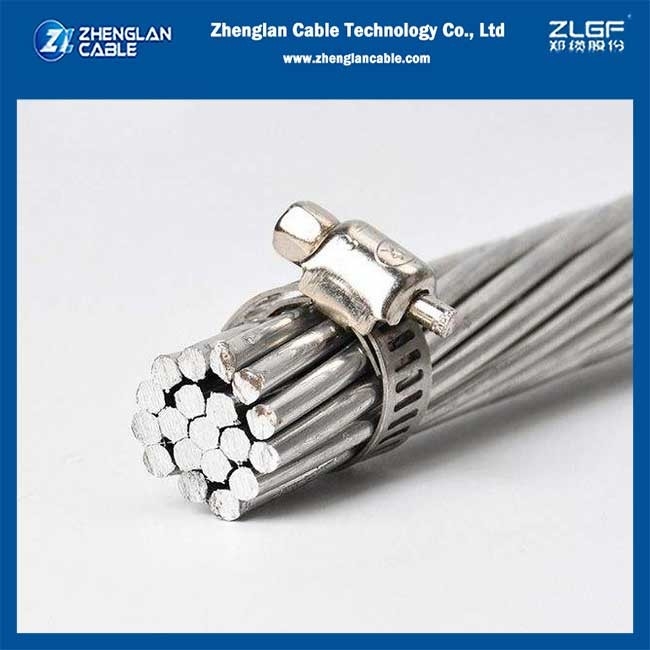

Bare AAAC Azusa conductor all aluminum conductor bare aluminum cable ASTM B399/399M
APPLICATION
All aluminum alloy conductor are made from aluminum-magnesium-silicon alloy of high electrical conductivity containing Magnesium (0.6-0.9%) & Silicon (0.5-0.9%) and they are usually or primary and secondary distribution use.
CONSTRUCTION
Aluminum-alloy 6201-T81 wires, concentrically stranded meets or exceeds the following ASTM specifications:
B398 Aluminum-Alloy 6201-T81 Wire for Electrical Purposes.
B399 Concentric-Lay-Stranded Aluminum-Alloy 6201-T81 Conductors.
Key Benefits :
High Tensile Strength as compared to AAC Conductor.
Higher Conductivity as compared to ACSR Conductor.
Better Corrosion resistant than ACSR Conductor.
Bare AAAC Azusa conductor all aluminum conductor bare aluminum cable ASTM B399/399M technical data
| Code Name | Total Area | Stranding | Conductor Nominal diameter |
Nominal Weight | Rated Strength | Max DC resistance at 20 oC |
|
| AWG or MCM | mm2 | No / mm | mm | kg/km | kN | Ω /km | |
| Akron | 30.58 | 15.52 | 7 x 1.68 | 5.04 | 43 | 4.92 | 2.1588 |
| Alton | 48.69 | 24.71 | 7 x 2.12 | 6.36 | 68 | 7.83 | 1.3557 |
| Ames | 77.47 | 39.19 | 7 x 2.67 | 8.01 | 108 | 12.42 | 0.8547 |
| Azusa | 123.3 | 62.44 | 7 x 3.37 | 10.11 | 171 | 18.88 | 0.5365 |
| Anaheim | 155.4 | 78.55 | 7 x 3.78 | 11.34 | 216 | 23.75 | 0.4264 |
| Amherst | 195.7 | 99.30 | 7 x 4.25 | 12.75 | 272 | 30.03 | 0.3373 |
| Alliance | 246.9 | 125.10 | 7 x 4.77 | 14.31 | 343 | 37.83 | 0.2678 |
| Butte | 312.8 | 158.60 | 19 x 3.26 | 16.30 | 435 | 46.46 | 0.2112 |
| Canton | 394.5 | 199.90 | 19 x 3.66 | 18.30 | 548 | 58.56 | 0.1676 |
| Cairo | 465.4 | 236.40 | 19 x 3.98 | 19.90 | 649 | 69.25 | 0.1417 |
| Darien | 559.5 | 283.57 | 19 x 4.36 | 21.80 | 778 | 83.10 | 0.1181 |
| Elgin | 652.6 | 331.00 | 19 x 4.71 | 23.55 | 908 | 96.98 | 0.1012 |
| Flint | 740.8 | 374.50 | 37 x 3.59 | 25.13 | 1028 | 107.36 | 0.0894 |
| Greeley | 927.2 | 469.60 | 37 x 4.02 | 28.14 | 1289 | 134.62 | 0.0713 |
Bare AAAC Azusa conductor all aluminum conductor bare aluminum cable ASTM B399/399M product images
Test equipment
Why you choose us?
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
Bare AAAC Azusa conductor all aluminum conductor bare aluminum cable ASTM B399/399M FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.
