Product Details
Place of Origin: Henan, China
Brand Name: Zhenglan cable
Certification: 3C，ISO 9001:2015，ISO 14001:2005
Model Number: Electrical wire building wire H05V-K flexible wire 60227 IEC(06)
Payment & Shipping Terms
Minimum Order Quantity: 10000m
Price: Negotiable
Packaging Details: 100m/roll, with wooden box, as customer's request.
Delivery Time: 15-30 days
Payment Terms: L/C, T/T,
Supply Ability: 12,000 KM/Year
Conductor Material: |
Copper |
Insulation: |
PVC |
Shelf Life: |
30 Years |
Color: |
Red/Yellow/Blue/Green/Black... |
Conductor Material: |
Copper |
Insulation: |
PVC |
Shelf Life: |
30 Years |
Color: |
Red/Yellow/Blue/Green/Black... |

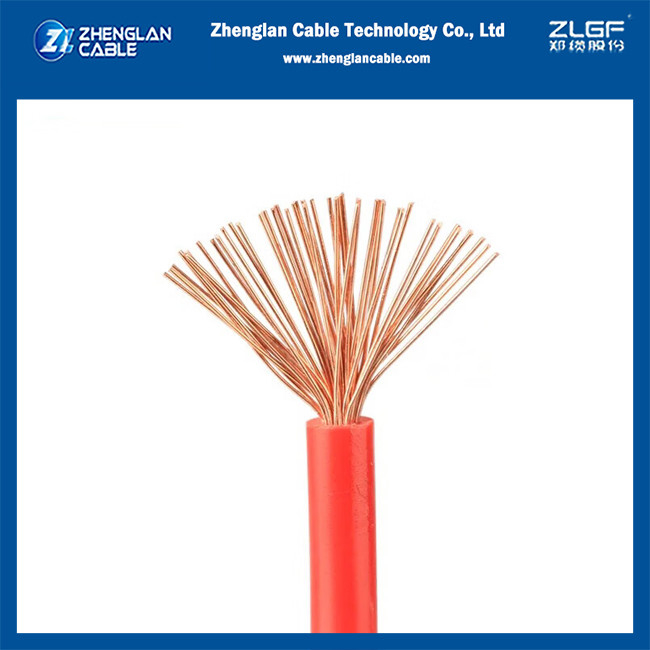

Electrical wire building wire H05V-K flexible wire 60227 IEC(06)
H05V-K flexible cable are designed for internal wiring in switch control, relay and instrumentation panels of power switchgear and for purposes such as stationary, static appliances, internal connectors in rectifier equipment, motor starters and controllers.
Remarks:
Flame retardant, fire resistance (adopt mica tape), low smoking and Halogen free, or other property are available.
Electrical wire building wire H05V-K flexible wire 60227 IEC(06) Technical data:
| Nominal section area(mm²) | No ./Dia of Strand (mm) |
Nom. Thickness of insulation (mm) |
Average OD Max. (mm) |
Max. DC conductor resistance at 20℃ (Ω/km) |
Min. Insulating resistance at 70℃ (MΩ·km) |
| 1*0.5 | 16/0.2 | 0.6 | 2.6 | 9.1 | 0.013 |
| 1*0.75 | 24/0.2 | 0.6 | 2.8 | 12.2 | 0.011 |
| 1*1.0 | 32/0.2 | 0.6 | 3.0 | 15.1 | 0.010 |
Copper Cable House Electric Wiring Cable BV Multi Purpose 1.5mm2 Single Core PVC Insulated images:
