Product Details
Place of Origin: Henan, China
Brand Name: Zhenglan cable
Certification: 3C，ISO 9001:2015，ISO 14001:2005
Model Number: PVC insulated flexible wire H07V-K EN 50525-2-31
Payment & Shipping Terms
Minimum Order Quantity: 10000m
Price: Negotiable
Packaging Details: 100m/roll, with wooden box, as customer's request.
Delivery Time: 15-30 days
Payment Terms: L/C, T/T,
Supply Ability: 12,000 KM/Year
Conductor Material: |
Bare Stranded Copper |
Insulation: |
PVC |
Shelf Life: |
30 Years |
Color: |
Red/Yellow/Blue/Green/Black... |
Conductor Material: |
Bare Stranded Copper |
Insulation: |
PVC |
Shelf Life: |
30 Years |
Color: |
Red/Yellow/Blue/Green/Black... |

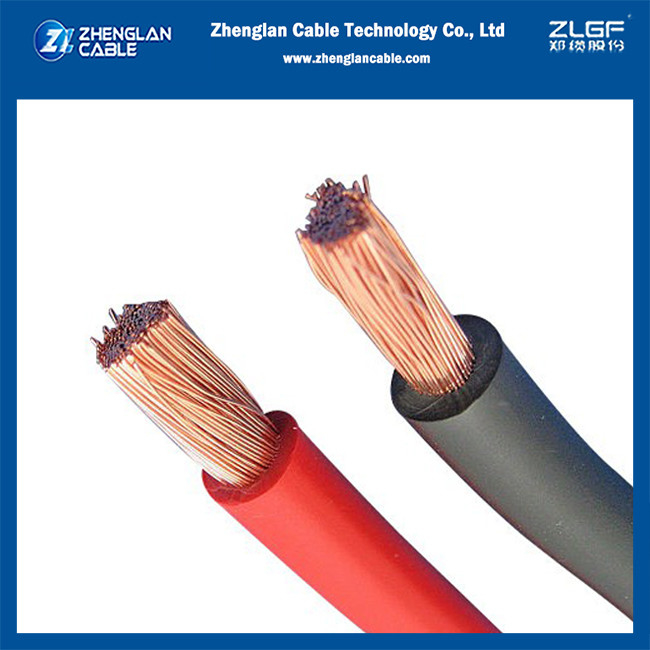

PVC insulated flexible wire H07V-K EN 50525-2-31
PVC insulated flexible wire can be installed in open air, in conduits, or in trunking. They are usually installed for Internal equipment wiring in switch control, relay and instrumentation panels of power switchgear, and for purposes such as internal connectors in rectifier equipment, motor starters and controllers..
Remarks:
Flame retardant, fire resistance (adopt mica tape), low smoking and Halogen free, or other property are available.
PVC insulated flexible wire H07V-K EN 50525-2-31 Technical data:
| Nominal section area(mm²) | No ./Dia of Strand (mm) |
Nom. Thickness of insulation (mm) |
Average OD Max. (mm) |
Max. DC conductor resistance at 20℃ (Ω/km) |
Min. Insulating resistance at 70℃ (MΩ·km) |
| 1*0.5 | 16/0.2 | 0.6 | 2.6 | 9.1 | 0.013 |
| 1*0.75 | 24/0.2 | 0.6 | 2.8 | 12.2 | 0.011 |
| 1*1.0 | 32/0.2 | 0.6 | 3.0 | 15.1 | 0.010 |
PVC insulated flexible wire H07V-K EN 50525-2-31 images:
