Product Details
Place of Origin: Wuzhi, Henan, CN
Brand Name: Zhenglan Cable
Certification: ISO 9001:2015，ISO 14001:2005; CCC
Model Number: 1KV XLPE Insulated LV Aerial budled cable with supporting system SANS 1418
Payment & Shipping Terms
Minimum Order Quantity: 1000m
Price: Negotiable
Packaging Details: Wooden drum, iron wooden drum or as required
Delivery Time: 10 days
Payment Terms: L/C, T/T
Supply Ability: 50000 M/day
Conductor Material: |
Aluminum |
Application: |
Overhead Line Use |
Standard: |
SANS 1418 |
Structure: |
AAC/XLPE+AAAC/XLPE |
Voltage: |
0.6/1KV |
Port: |
Qingdao |
Conductor Material: |
Aluminum |
Application: |
Overhead Line Use |
Standard: |
SANS 1418 |
Structure: |
AAC/XLPE+AAAC/XLPE |
Voltage: |
0.6/1KV |
Port: |
Qingdao |
1KV XLPE Insulated LV Aerial budled cable with supporting system SANS 1418 consists of three phase cores of hard-drawn stranded compacted aluminium conductors insulated with carbon- loaded XLPE laid up around an aluminium-alloy supporting core insulated with carbon loaded XLPE to ensure UV protection.
1KV XLPE Insulated LV Aerial budled cable with supporting system SANS 1418 technical information
| Code Word |
3×25mm2+ 1×54.6mm2 |
3×35mm2+ 1×54.6mm2 |
3×50mm2+ 1×54.6mm2 |
3×70mm2+ 1×54.6mm2 |
||
| Phase Conductor | Cross Section | (mm2) | 25 | 35 | 50 | 70 |
| Insulation Thickness | (mm) | 1.4 | 1.6 | 1.6 | 1.8 | |
| D.C.Resistance At 20 ℃ | (Ohm/km) | 1.2 | 0.868 | 0.641 | 0.443 | |
| Messenger | Cross Section | (mm2) | 54.6 | 54.6 | 54.6 | 54.6 |
| Insulation Thickness | (mm) | 1.6 | 1.6 | 1.6 | 1.6 | |
| D.C.Resistance A 20 ℃ | (Ohm/km) | 0.63 | 0.63 | 0.63 | 0.63 | |
| Minium Rated Strength | (daN) | 1660 | 1660 | 1660 | 1660 | |
| Public Lighting | Cross Section | (mm2) | - | - | - | - |
| Insulation Thickness | (mm) | - | - | - | - | |
| D.C.Resistance At 20 ℃ | (Ohm/km) | - | - | - | - | |
| Conductor Diameter | Phase | Max | 6.3 | 7.3 | 8.4 | 10.2 |
| Min | 5.8 | 6.8 | 7.9 | 9.7 | ||
| Messenger | Max | - | - | - | - | |
| Min | - | - | - | - | ||
| Public Lighting | Max | - | - | - | - | |
| Min | - | - | - | - | ||
| Overall Diameter | Phase | Max | 9.4 | 10.9 | 12 | 14.2 |
| Min | 8.6 | 10 | 11.1 | 13.3 | ||
| Messenger | Max | 13 | 13 | 13 | 13 | |
| Min | 12.3 | 12.3 | 12.3 | 12.3 | ||
| Public Lighting | Max | - | - | - | - | |
| Min | - | - | - | - | ||

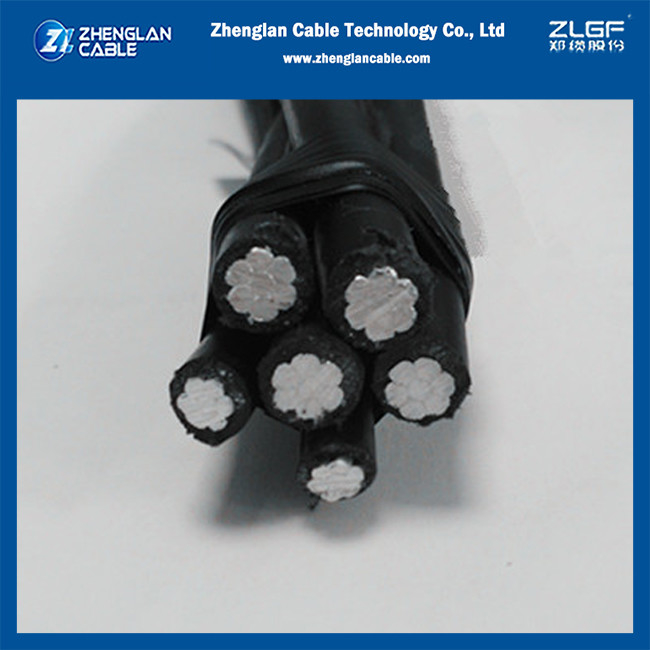

1KV XLPE Insulated LV Aerial budled cable with supporting system SANS 1418 images
About Zhenglan Cable Technology Co., Ltd
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Depends on cable sizes
