H1Z2Z2-K Solar Cables DC Cable Solar Panel Cable 6mm2

Product Details

Place of Origin: China

Brand Name: Zhenglan Cable

Certification: 3C,ISO 9001:2015,ISO 14001:2005

Model Number: H1Z2Z2-K Solar Cables DC Cable Solar Panel Cable 6mm2

Payment & Shipping Terms

Minimum Order Quantity: 5000meters single color

Price: Negotiable

Packaging Details: 1000m/drum

Delivery Time: 7-15DAY

Payment Terms: T/T, L/C, ,Western Union

Supply Ability: 80000M/DAY

Get Best Price
Highlight:

6mm2 Solar Cables

,

DC Cable Solar Panel Cable

,

6mm2 Solar Panel Cable

Material:
Tinned Copper
Insulation:
Cross Linkedin Polyolefin
Outer Sheath:
Cross Linkedin Polyolefin
Size:
6mm2
Standard:
EN50618, EN60332-1-2, EN60811
Voltage:
DC 1.5KV
Material:
Tinned Copper
Insulation:
Cross Linkedin Polyolefin
Outer Sheath:
Cross Linkedin Polyolefin
Size:
6mm2
Standard:
EN50618, EN60332-1-2, EN60811
Voltage:
DC 1.5KV
H1Z2Z2-K Solar Cables DC Cable Solar Panel Cable 6mm2

H1Z2Z2-K Solar Cables DC Cable Solar Panel Cable 6mm2



H1Z2Z2-K Solar Cables DC Cable Solar Panel Cable 6mm2 are designed to withstand outdoor conditions, UV radiation, and temperature fluctuations specific to solar installations. They are also optimized for low energy loss. Solar cables are suitable for both residential and commercial solar installations, with variations available to meet different system requirements.



H1Z2Z2-K Solar Cables DC Cable Solar Panel Cable 6mm2 Construction:



Conductor :  Tinned Copper Conductor according to BS EN 60228:2005 cl. 5.
Insulation : UV resistant, cross linked, halogen free, flame retardant compound
Core Identification : Red, black
Sheath : UV resistant, cross linked, halogen free, flame retardant compound
Cable Colour : Red, Black

Packing style: 100meters/roll, 200meters/roll, 500meters/drum, 1000meters/drum, or customize as per customer’s requirement



H1Z2Z2-K Solar Cables DC Cable Solar Panel Cable 6mm2​ STANDARDS
EN 50618, TÜV 2 PfG 1169/08.2007, EN 50288-3-7,
EN 60068-2-78, EN 50395
Flame retardant to IEC/EN 60332-1-2
Low Smoke Zero Halogen to IEC/EN 60754-1/2,
IEC/EN 61034-1/2, EN 50267-2-2
Ozone and UV Resistant to EN 60811-403, EN 50396,
EN ISO 4892-1/3,
Water Resistant to AD8



H1Z2Z2-K Solar Cables DC Cable Solar Panel Cable 6mm2​  CHARACTERISTICS
Voltage Rating Uo/U
AC: 1000/1000V
DC: 1500/1500V
Maximum Voltage (Umax)
1800V
Test Voltage
6.5kV AC
Temperature Rating
Fixed: -40°C to +90°C
Minimum Bending Radius
5 x overall diameter
Maximum Conductor Temperature
+120°C (for 20000h)



H1Z2Z2-K Solar Cables DC Cable Solar Panel Cable 6mm2 specification:



Construction Conductor Construction Conductor Outer Cable Outer Resistance Max. Current Carring Capacity AT 60℃
mm² nxmm mm mm Ω/Km A
1X6.0 84X0.283 3.06 6.3 3.39 70

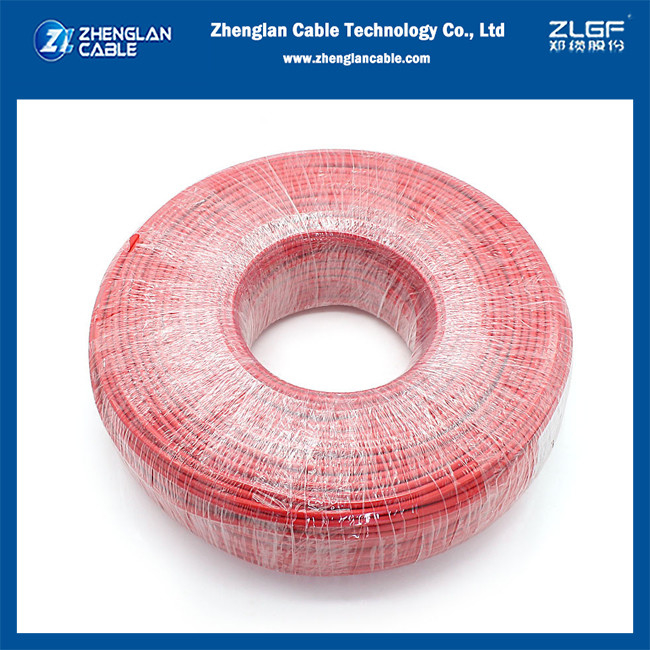

H1Z2Z2-K Solar Cables DC Cable Solar Panel Cable 6mm2​ images:



H1Z2Z2-K Solar Cables DC Cable Solar Panel Cable 6mm2 0H1Z2Z2-K Solar Cables DC Cable Solar Panel Cable 6mm2 1H1Z2Z2-K Solar Cables DC Cable Solar Panel Cable 6mm2 2

H1Z2Z2-K Solar Cables DC Cable Solar Panel Cable 6mm2 3

H1Z2Z2-K Solar Cables DC Cable Solar Panel Cable 6mm2 4
