Photovoltaic Cable For Solar Power Park EN50618 4mm2

Photovoltaic cable for solar power park EN50618 4mm2

Photovoltaic cable for solar power park EN50618 4mm2 are suitable for fixed installations, internal and external with conduit or systems, but not for direct burial applications. Photovoltaic cable for solar power park EN50618 4mm2  are designed for interconnecting power supplies within renewable energy photovoltaic systems such as solar panel arrays in solar energy farms. These cables play a crucial role in offering the safety and efficiency of the solar power system, connecting various components, and facilitating the transmission of electricity generated by solar panels.

Photovoltaic cable for solar power park EN50618 4mm2 Construction:

Conductor :  Tinned Copper Conductor according to BS EN 60228:2005 cl. 5.
Insulation : UV resistant, cross linked, halogen free, flame retardant compound
Core Identification : Red, black
Sheath : UV resistant, cross linked, halogen free, flame retardant compound
Cable Colour : Red, Black

Packing style: 100meters/roll, 200meters/roll, 500meters/drum, 1000meters/drum, or customize as per customer’s requirement

Photovoltaic cable for solar power park EN50618 4mm2​ STANDARDS
EN 50618, TÜV 2 PfG 1169/08.2007, EN 50288-3-7,
EN 60068-2-78, EN 50395
Flame retardant to IEC/EN 60332-1-2
Low Smoke Zero Halogen to IEC/EN 60754-1/2,
IEC/EN 61034-1/2, EN 50267-2-2
Ozone and UV Resistant to EN 60811-403, EN 50396,
EN ISO 4892-1/3,
Water Resistant to AD8

H1Z2Z2-K Solar Cables DC Cable Solar Panel Cable 6mm2​  CHARACTERISTICS
Voltage Rating Uo/U
AC: 1000/1000V
DC: 1500/1500V
Maximum Voltage (Umax)
1800V
Test Voltage
6.5kV AC
Temperature Rating
Fixed: -40°C to +90°C
Minimum Bending Radius
5 x overall diameter
Maximum Conductor Temperature
+120°C (for 20000h)

Photovoltaic cable for solar power park EN50618 4mm2 specification:

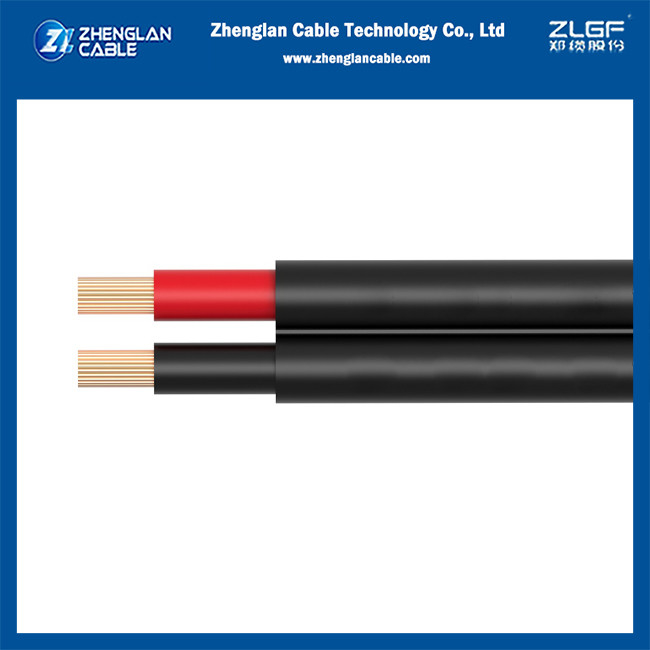

Photovoltaic cable for solar power park EN50618 4mm2 ​​ images:
