Overhead Insulated Cable Triplex Cable 1kv 2x25+25mm2
Overhead Insulated Cable Triplex Cable 1kv 2x25+25mm2

Overhead Insulated Cable Triplex Cable 1kv 2x25+25mm2

Product Details

Place of Origin: Henan, China

Brand Name: ZHENGLAN CABLE

Certification: ISO, IEC

Model Number: Overhead insulated cable triplex cable 1kv

Payment & Shipping Terms

Minimum Order Quantity: 2000m

Price: 0.1-50USD/meter

Packaging Details: wood drum

Delivery Time: 10 Working Days

Payment Terms: Western Union, L/C, T/T

Supply Ability: 20000m/day

Get Best Price

Product Details

Product Description
Highlight:

Triplex Overhead insulated cable

,

2x25+25mm2 Overhead insulated cable

,

1kv Overhead insulated cable

Model:
Aerial Bundled Cable
Neutral Conductor:
Aluminum Alloy
Service Life:
70 Years
Standard:
GB/T 12527-2008, IEC60502-1, NTP 370.258
Phase Conductor:
Aluminum
Insulation:
XLPE
Conductor Type:
Stranded
Phase Cable Conductor:
AAC
Numer Of Cores:
2+1
Installation Type:
Overhead
Model:
Aerial Bundled Cable
Neutral Conductor:
Aluminum Alloy
Service Life:
70 Years
Standard:
GB/T 12527-2008, IEC60502-1, NTP 370.258
Phase Conductor:
Aluminum
Insulation:
XLPE
Conductor Type:
Stranded
Phase Cable Conductor:
AAC
Numer Of Cores:
2+1
Installation Type:
Overhead
Overhead Insulated Cable Triplex Cable 1kv 2x25+25mm2

Overhead insulated cable triplex cable 1kv 2x25+25mm2


Application:
For secondary urban and rural overhead distribution networks, with voltages up to 1000 V.

Construction:
1. Conductor: Aluminum 1350, class 2.
2. Insulation: Cross-linked polyethylene XLPE.
3. Insulated neutral support: AAAC - Aluminum alloy 6201 - XLPE.

Main features:
Reduces energy theft, cross-linked polyethylene allows greater current capacity and high insulation resistance, lower inductive reactance than with bare conductors, used in overhead distribution lines. Greater safety due to the mechanical resistance and hardness of the insulation. The use of insulators is not required for its installation. Resistant to abrasion, weather and sunlight.


Reference standard

NTP 370.258: Conductores con alambres redondos de aluminio cableados concéntricamente para líneas aéreas.
Normas internacionales aplicables
IEC 60228: Conductores para cables aislados.

Electrical characteristics
Nominal service voltage Uo/U (Um) 0.6/ 1 (1.2) kV
Dielectric rigidity 4.0 kV
Dielectric rigidity time Vca to insulation 5 min.

Characteristics of use
Resistance to Ultraviolet Radiation Yes
Curve factor once installed 15(xD)
Maximum operating temperature 90 °C
Emergency overload temperature 130 °C
Maximum conductor temperature in short circuit 250 °C


Overhead insulated cable triplex cable 1kv 2x25+25mm2 Technical data


Nro.Fases Sección
Conductor
Fase		 Diám.
Cond.
de Fase		 Mín.
espes
Aislam.		 Sección
Neutro
Soporte		 Diám.
Neutro
Soporte		 Mín. Espes.
Aislam.
Neutro
Mensaj.		 Diam.
Nom.
Exterio
r		 Peso
aprox.
[mm²] [mm] [mm] [mm²] [mm] [mm] [mm] [kg/km]
2 25 5.8 1.14 25 6.4 1.14 18.2 290


Overhead insulated cable triplex cable 1kv 2x25+25mm2 images

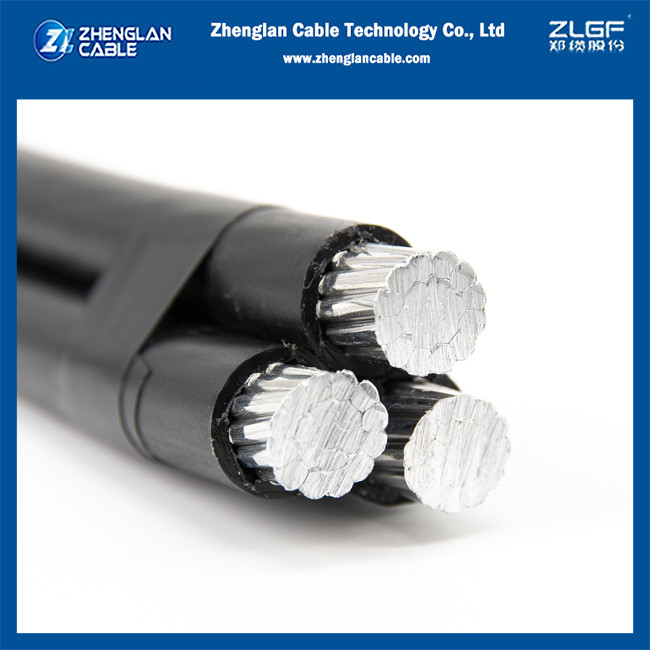

Overhead Insulated Cable Triplex Cable 1kv 2x25+25mm2 0
Overhead Insulated Cable Triplex Cable 1kv 2x25+25mm2 1
