Product Details
Place of Origin: Henan China
Brand Name: Zhenglan Cable
Certification: ISO
Model Number: 1KV cu/xlpe/lszh 1x95mm2 IEC60502-1 underground cable unarmored
Payment & Shipping Terms
Minimum Order Quantity: 1000meters
Price: 1-100USD/meter
Packaging Details: Drum
Delivery Time: 7working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000m/day
Conductor: |
Bare Copper |
Insulation: |
XLPE |
Armor: |
No |
Outer Sheath: |
LSZH |
Core Number: |
1core |
Voltage: |
0.6/1kv |
Conductor: |
Bare Copper |
Insulation: |
XLPE |
Armor: |
No |
Outer Sheath: |
LSZH |
Core Number: |
1core |
Voltage: |
0.6/1kv |
1KV cu/xlpe/lszh 1x95mm2 IEC60502-1 underground cable unarmored
1KV cu/xlpe/lszh 1x95mm2 IEC60502-1 underground cable unarmored are to be used in industrial applications with an additional mechanical protection in low voltage installation system. These cables can be fixed on cable trays, within conduits or fixed to walls. Their low smoke zero halogen, flame-retardant non-corrosive outersheath makes them suitable for use where smoke and corrosive gases would pose a risk to human life and sensitive equipment in the event of a fire.
1KV cu/xlpe/lszh 1x95mm2 IEC60502-1 underground cable unarmored Construction:
Conductor: Plain annealed copper (class 2, normal stranded(≤35mm2) or compact stranded(＞35mm2)
Insulation: XLPE
Filler, binder and inner covering (if any): PP, PET, LSZH
Outer sheath: LSZH
1KV cu/xlpe/lszh 1x95mm2 IEC60502-1 underground cable unarmored Characteristics
Voltage rate: 0.6/1kV
Maximum conductor temperature: 90℃ in normal operation; 250℃ in short-circuit for 5s max.
Minimum bend radius: 8xD (eight times overall diamerter of cable)
Flame retardant optional: IEC 60332-1; IEC 60332-3-24
Acid gas emission (HCl)(optional): IEC 60502-1; IEC 60754-1
Fluorine content: IEC 60502-1; IEC 60684-2
pH and conductivity: IEC 60502-1; IEC 60754-2
Smoke emission(optional): IEC 61034-2
|
Nominal Area |
Approx Conductor Diameter | Nominal Insulation thickness | Nominal Sheath thickness |
Approx. Overall Diameter |
Approx. Weight |
| mm | mm | mm | mm | mm | Kg/km |
| 1x95 | 12.4 | 1.1 | 1.5 | 17.0 | 1025 |

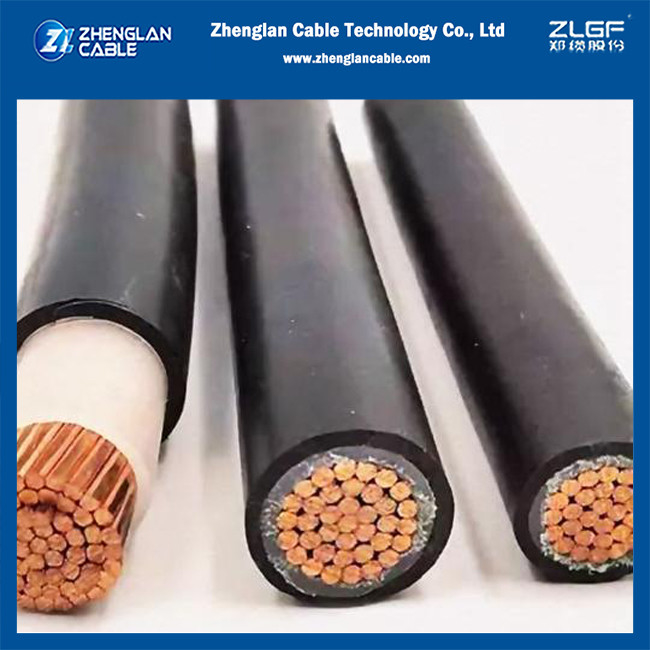

1KV cu/xlpe/lszh 1x95mm2 IEC60502-1 underground cable unarmored Product images
1KV cu/xlpe/lszh 1x95mm2 IEC60502-1 underground cable unarmored packages
1KV cu/xlpe/lszh 1x95mm2 IEC60502-1 underground cable unarmored test machines
