Product Details
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: ISO 9001:2015，ISO 14001:2005; CCC
Model Number: QUADRUPLEX OVERHEAD SERVICE CABLE 4X35MM2
Payment & Shipping Terms
Minimum Order Quantity: 1000-5000m
Price: Negotiable
Packaging Details: Wooden drum, iron wooden drum or as required
Delivery Time: 10 days
Payment Terms: L/C, T/T
Supply Ability: 40000 M/day
Insulation Material: |
XLPE |
Conductor Material: |
Aluminum |
Application: |
Overhead |
Standard: |
GB/T 12527-2008, IEC60502-1, NFC 33-209 |
Structure: |
AL/XLPE |
Voltage: |
0.6/1KV |
Port: |
Qingdao Or Shanghai |
Insulation Material: |
XLPE |
Conductor Material: |
Aluminum |
Application: |
Overhead |
Standard: |
GB/T 12527-2008, IEC60502-1, NFC 33-209 |
Structure: |
AL/XLPE |
Voltage: |
0.6/1KV |
Port: |
Qingdao Or Shanghai |

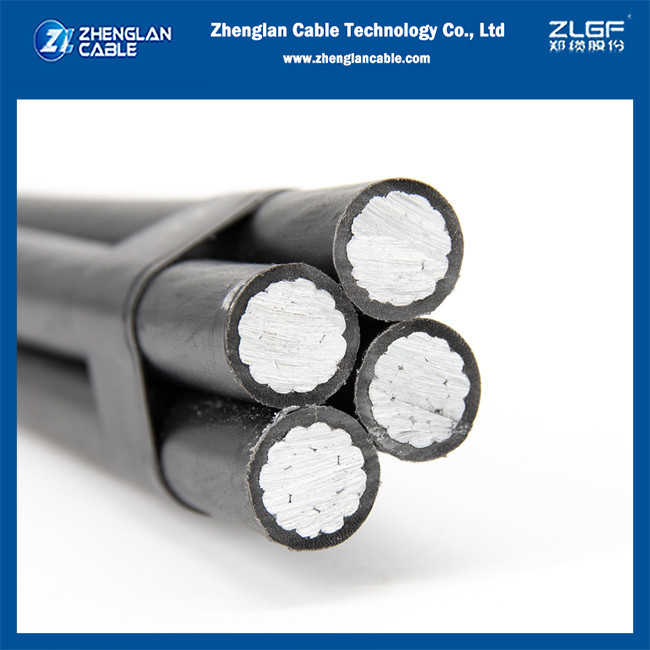

QUADRUPLEX OVERHEAD SERVICE CABLE AERIAL BUNDLED CABLE 4X35MM2
Conductor: Aluminum Wire, 1350-H19 for Electrical Purposes.
Insulation: XLPE
Standards:
GB/T 12527-2008, IEC60502-1, NFC 33-209
Rated voltage: 0.6/1kV
Relative manufacturing standards: IEC61089, ASTM B231, ASTM B232, BS215, DIN48201, DIN48204.
We can also manufacture ABC cable according to customer's special requirements.
QUADRUPLEX OVERHEAD SERVICE CABLE AERIAL BUNDLED CABLE 4X35MM2 Application:
APPLICATION: Used primarily for overhead secondary distribution lines.
The purpose of messenger wire is
A) It acts as load bearing wire.
B) It acts as earth or neutral conductor.
It meets or exceeds the following specifications:
QUADRUPLEX OVERHEAD SERVICE CABLE AERIAL BUNDLED CABLE 4X35MM2 parameters
| NUMBER CORES | NOMINAL CROSS SECTIONAL AREA (mm²) | NOMINAL OVERALL DIAMETER (mm) | NOMINAL WEIGHT (KG/KM) | MINIMUM BREAKING LOAD (KN) | MAXIMUM CONDUCTOR RESISTANCE (Ω/Km) | CURRENT RATING (A) |
| 4 | 35 | 25.1 | 539 | 5.2 | 0.868 | 132 |
QUADRUPLEX OVERHEAD SERVICE CABLE AERIAL BUNDLED CABLE 4X35MM2 images
About Zhenglan Cable Technology Co., Ltd
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.
