Product Details
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: 3C，ISO 9001:2015，ISO 14001:2005
Model Number: 6 AWG Peachbell AAC Construction
Payment & Shipping Terms
Minimum Order Quantity: 1000 meters
Packaging Details: Fully wooden drum, steel wooden drum, fully steel drum or customized
Delivery Time: 15-30 days
Payment Terms: L/C, T/T,
Supply Ability: 100KM/Month
Material: |
Aluminium |
Size: |
AWG,mm2 Or Customized |
Quality: |
100% IEC Standards Test |
Standard: |
ASTM B230 ASTM B231 |
Brand: |
Zhenglan Cable |
Material: |
Aluminium |
Size: |
AWG,mm2 Or Customized |
Quality: |
100% IEC Standards Test |
Standard: |
ASTM B230 ASTM B231 |
Brand: |
Zhenglan Cable |

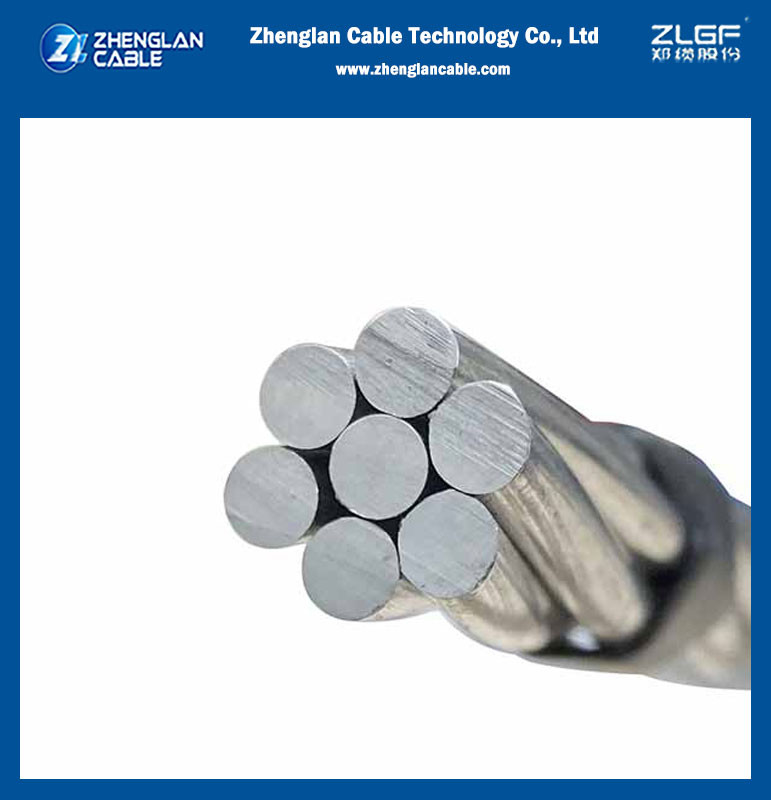

6 AWG Peachbell AAC Construction
Aluminum 1350-H19 wires, concentrically stranded
AAC Conductor is widely used in power transmission lines with various voltage levels, since they thave such good characteristics as simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity and are also suitable for laying across rivers and valleys where special geographical features exist.
AOGULI AAC conductors are manufactured in accordance with the following standards:
ASTM B230, NTC 360: Aluminum 1350-H19 Wire.
ASTM B231, NTC 308: Concentric-Lay-Stranded Aluminum 1350 Conductors.
IEC 228 for sizes in mm2.
| Code Word | Peachbell |
| Size (AWG or kcmil) | 6 |
| Stranding | 7 |
| Individual Wire Diameter (inches) | 0.0612 |
| Complete Cable Diameter (inches) | 0.184 |
| Weight Per 1000ft. (lbs.) | 25 |
| Rated Strength (lbs.) | 563 |
| Resistance OHMS/1000 ft. DC@ 20° | 0.658 |
| Allowable Ampacity+ (Amps) | 0.805 |
| Resistance OHMS/1000 ft. AC @ 75°C | 103 |
The reason you choose us:
If you are interested, please do not hesitate to contact us.Any inquiry will be welcomed.
