Product Details
Place of Origin: Henan China
Brand Name: Zhenglan Cable
Certification: ISO
Model Number: 1KV Armored Power Cable CU/PVC/PVC/SWA/PVC 4X16MM2 IEC60502-1
Payment & Shipping Terms
Minimum Order Quantity: 3000meters
Price: 1-100USD/meter
Packaging Details: Drum
Delivery Time: 7working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000m/day
Conductor: |
Bare Copper |
Insulation: |
PVC |
Armor: |
SWA |
Outer Sheath: |
PVC |
Core Number: |
4core |
Voltage: |
0.6/1kv |
Conductor: |
Bare Copper |
Insulation: |
PVC |
Armor: |
SWA |
Outer Sheath: |
PVC |
Core Number: |
4core |
Voltage: |
0.6/1kv |
1KV Armored Power Cable CU/PVC/PVC/SWA/PVC 4X16MM2 IEC60502-1
1KV Armored Power Cable CU/PVC/PVC/SWA/PVC 4X16MM2 IEC60502-1 Application
Mostly used for buildings and industrial plants where extra mechanical protection is required. Suitable for installation indoor/outdoor, enclosed in conduit, in underground duct and buried directly.
1KV Armored Power Cable CU/PVC/PVC/SWA/PVC 4X16MM2 IEC60502-1 Standards
IEC 60228 Conductors
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1: Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)
1KV Armored Power Cable CU/PVC/PVC/SWA/PVC 4X16MM2 IEC60502-1 Construction
1. Conductor: Copper , Class 1: solid conductor for cable below 10mm2, or Class 2: stranded conductor
2. Insulation: Polyvinyl chloride PVC
3. Filler: Non-hygroscopic material
4. Binder tape: Non-hygroscopic material
5. Outer sheath: Polyvinyl chloride PVC

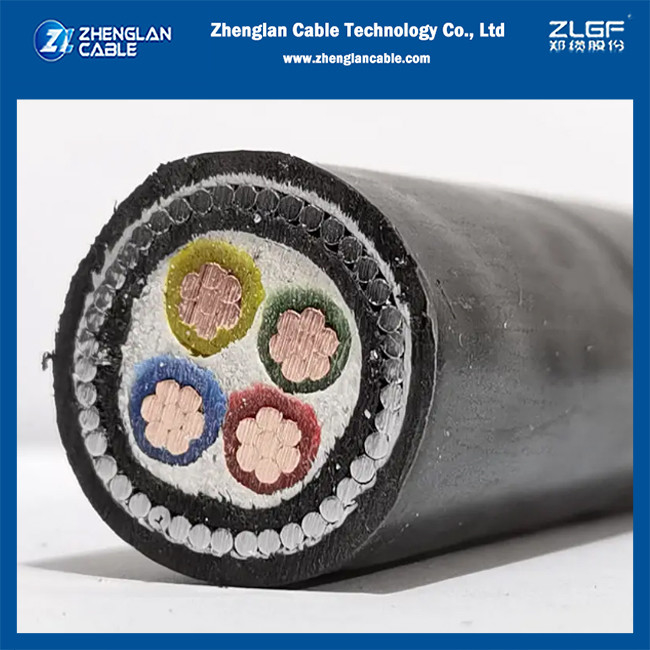

1KV Armored Power Cable CU/PVC/PVC/SWA/PVC 4X16MM2 IEC60502-1 Product picture
1KV Armored Power Cable CU/PVC/PVC/SWA/PVC 4X16MM2 IEC60502-1 PARAMETER :
| Nominal Area | Approx Conductor Diameter | Nominal Insulation thickness | Nominal bedding thickness | Nominal Steel Wire dia. | Nominal Sheath thickness | Approx. Overall Diameter | Approx. Weight |
| mm2 | mm | mm | mm | mm | mm | mm | Kg/Km |
| 4x16 rm | 5.0 | 1.0 | 1.0 | 1.6 | 1.8 | 27 | 1750 |
