795MCM ACSR Drake ASTM B232/232M Aluminum Conductor Steel Reinforced
795MCM ACSR Drake ASTM B232/232M Aluminum Conductor Steel Reinforced
795MCM ACSR Drake ASTM B232/232M Aluminum Conductor Steel Reinforced
795MCM ACSR Drake ASTM B232/232M Aluminum Conductor Steel Reinforced

795MCM ACSR Drake ASTM B232/232M Aluminum Conductor Steel Reinforced

Product Details

Place of Origin: Henan, China

Brand Name: Zhenglan Cable

Certification: 3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007

Model Number: 795MCM ACSR Drake ASTM B232/232M

Payment & Shipping Terms

Minimum Order Quantity: 1000m

Price: 0.5-80USD/m

Packaging Details: Wooden drum, wood and steel drum,as customer's request

Delivery Time: 15 days

Payment Terms: T/T, L/C

Supply Ability: 10-30tons/day

Get Best Price

Product Details

Product Description
Highlight:

795MCM Aluminum Conductor Steel Reinforced

,

ACSR Aluminum Conductor

Material:
795MCM ACSR Drake ASTM B232/232M Aluminum Conductor Steel Reinforced
Aluminum:
Aluminum And Galvanized Steel Wire
Core:
Steel
Cable Drum Length:
Customized
Material:
795MCM ACSR Drake ASTM B232/232M Aluminum Conductor Steel Reinforced
Aluminum:
Aluminum And Galvanized Steel Wire
Core:
Steel
Cable Drum Length:
Customized
795MCM ACSR Drake ASTM B232/232M Aluminum Conductor Steel Reinforced

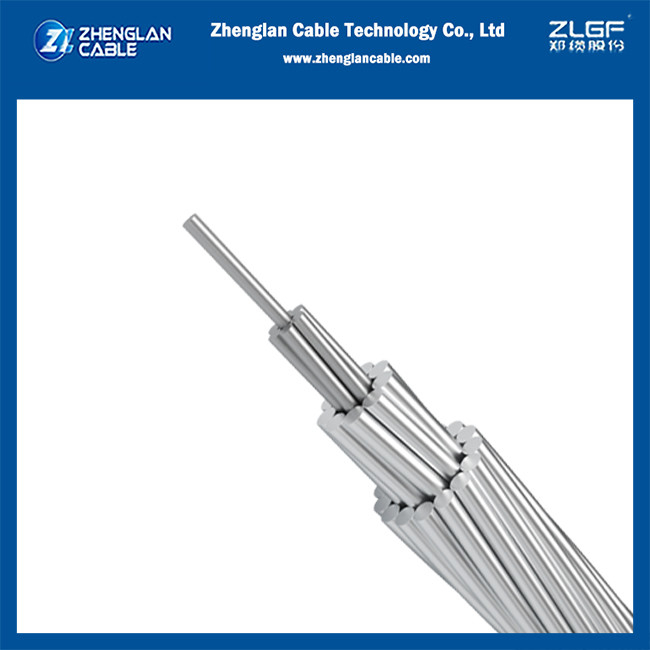

795MCM ACSR Drake ASTM B232/232M Aluminum Conductor Steel Reinforced 0795MCM ACSR Drake ASTM B232/232M Aluminum Conductor Steel Reinforced​ Construction



795MCM ACSR Drake ASTM B232/232M Aluminum Conductor Steel Reinforced is a specific type of high-capacity, high-strength stranded cable typically used in overhead power lines. It is composed made from round aluminum 1350-H19 wires and round coated steel core wire.
The outer strands of ACSR cable are aluminum, chosen for its excellent conductivity, low weight and low cost. The center strand is of steel for the strength required to support the weight without stretching the aluminum due to its ductility. This gives the cable an overall high tensile strength.

Manufacture reference standards
B-230: Aluminum wire, 1350-H19 for Electrical Purposes
B-231: Aluminum conductors, Concentric-Lay-Stranded
B-232: Aluminum conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR)
B-498: Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR)

795MCM ACSR Drake ASTM B232/232M Aluminum Conductor Steel Reinforced​ technical data


Code
Name		 Area Equivalent
copper area		 Stranding
and wire
diameter		 Approx.
overall
diameter		   Rated
Strength		 Maximum DC
resistance
at 20 oC
Weight
Aluminium Steel Total
AWG or
MCM		 mm2 mm2 mm2 AWG or
MCM		 mm2 Aluminium Steel   Aluminium Steel Total kN Ω / km
mm mm mm kg/km kg/km kg/km
Drake 795 402.6 65.4 468.0 500 246 26/4.44 7/3.45 28.11 1112 513 1625 138.4 0.07173


795MCM ACSR Drake ASTM B232/232M Aluminum Conductor Steel Reinforced reference image

795MCM ACSR Drake ASTM B232/232M Aluminum Conductor Steel Reinforced 1

795MCM ACSR Drake ASTM B232/232M Aluminum Conductor Steel Reinforced 2





Why you choose us?

  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
