Product Details
Place of Origin: China
Brand Name: Zhenglan Cable
Certification: 3C，ISO 9001:2015，ISO 14001:2005
Model Number: Waterproof CU solar solar cable 1.5kv 25mm solar cable solar cable 10mm
Payment & Shipping Terms
Minimum Order Quantity: 5000meters single color
Price: Negotiable
Packaging Details: 1000m/drum
Delivery Time: 7-15DAY
Payment Terms: T/T, L/C, ,Western Union
Supply Ability: 80000M/DAY
Material: |
Tinned Copper |
Insulation: |
Cross Linkedin Polyolefin |
Outer Sheath: |
Cross Linkedin Polyolefin |
Size: |
6mm2 |
Standard: |
EN50618, EN50332-1 |
Voltage: |
DC 1.5KV |
Material: |
Tinned Copper |
Insulation: |
Cross Linkedin Polyolefin |
Outer Sheath: |
Cross Linkedin Polyolefin |
Size: |
6mm2 |
Standard: |
EN50618, EN50332-1 |
Voltage: |
DC 1.5KV |

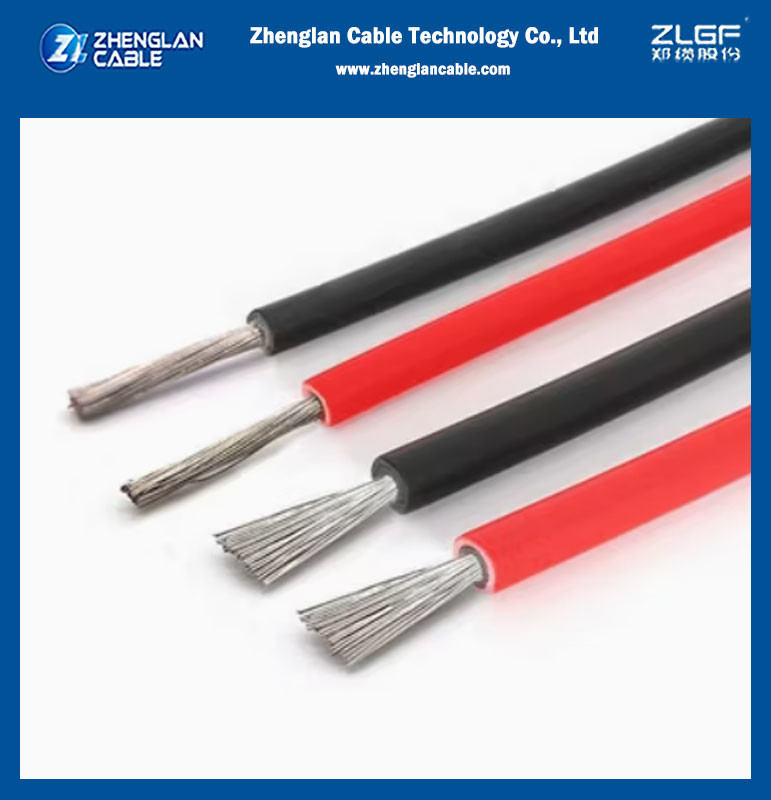

Single Solar Cable with High Durability EN50618 UL4703 Energy Wire Electrical Wire
Application
Photovoltaic solar cables are intended for interconnecting power supplies within renewable energy photovoltaic systems such as solar panel arrays in solar energy farms. PV cables are manufactured in accordance with standard BS EN 50618 or UL4703 and are suitable for fixed installations, internal and external with conduit or systems or direct burial applications
Standard
EN50618, UL4703
SPECIFICATION
Nominal Voltage: PV1-F: DC 1.0KV AC 0.6/1.0KV
H1Z2Z2-K: DC 1.5KV AC 1.0/1.0KV
Ambient Temperature: -40ºC~+90ºC
Max.Temperature at conductor: +120ºC
Service life: >25 years ( -40ºC~+90ºC)
Withstand voltage(V/5min): AC6500
Min bending radius(mm) : 5*D
CONSTRUCTION
1. class 5 tinned copper conductor
2. insulation
3. sheath
PARAMETERS
| 1 | 2 | 3 | 4 | 5 |
| Number and nominal sectional area of conductors | Thickness of insulation | Thickness of sheath | Maximum resistance of conductor at 20ºC | Current carrying capacity |
| mm2 | mm | mm | Ω/km | A |
| 1x1.5 | 0.7 | 0.8 | 13.7 | 30 |
| 1x2.5 | 0.7 | 0.8 | 8.21 | 41 |
| 1x4 | 0.7 | 0.8 | 5.09 | 55 |
| 1x6 | 0.7 | 0.8 | 3.39 | 70 |
| 1x10 | 0.7 | 0.8 | 1.95 | 98 |
| 1x16 | 0.7 | 0.9 | 1.24 | 132 |
| 1x25 | 0.9 | 1.0 | 0.795 | 176 |
| 1x35 | 0.9 | 1.1 | 0.565 | 218 |
| 1x50 | 1.0 | 1.2 | 0.393 | 276 |
| 1x70 | 1.1 | 1.2 | 0.277 | 347 |
| 1x95 | 1.1 | 1.3 | 0.210 | 416 |
| 1x120 | 1.2 | 1.3 | 0.164 | 488 |
| 1x150 | 1.4 | 1.4 | 0.132 | 566 |
| 1x185 | 1.6 | 1.6 | 0.108 | 644 |
| 1x240 | 1.7 | 1.7 | 0.817 | 775 |
