Product Details
Place of Origin: Wuzhi, Henan, CN
Brand Name: Zhenglan Cable
Certification: ISO 9001:2015，ISO 14001:2005; CCC
Model Number: LV ABC cable AAC covered with XLPE insulation AAAC supported Aerial bundled cable IEC60502-1
Payment & Shipping Terms
Minimum Order Quantity: 200-5000m depends on the specificaion
Price: Negotiable
Packaging Details: Wooden drum, iron wooden drum or as required
Delivery Time: 10 days
Payment Terms: L/C, T/T
Supply Ability: 50000 M/day
Conductor Material: |
Copper |
Insulation: |
XLPE |
Standard: |
IEC 60502 BS 7870 NFC 33-209 |
Jacket: |
PVC |
Voltage: |
0.6/1KV |
Port: |
Qingdao |
Numer Of Cores: |
3+1 |
Conductor Material: |
Copper |
Insulation: |
XLPE |
Standard: |
IEC 60502 BS 7870 NFC 33-209 |
Jacket: |
PVC |
Voltage: |
0.6/1KV |
Port: |
Qingdao |
Numer Of Cores: |
3+1 |
2*16mm2 overhead AAC conductor XLPE insulation aluminum wire twisted ABC cable
Standard :NFC 33-209
Construction :
1.Conductor: Stranded Aluminium wire conductor
2.Insulation:XLPE (cross-linked polyethylene)or PE (weather resistant)
3.Insulation Color: Black
Characteristic :
1.Temperature Rating:-20ºC up to +90ºC
2.Voltage Rating:600/1000V
3.Min inner bending radius:
Up to 25mm:4x overall diameter
Above 25mm:6x over diameter
4.Behaviour in fire: Flame retardant cable acc.to IEC60332-1
Application:
Aerial Bundled Cable(overhead cables)is applied for elelctric power distribution in low voltage metropolitan,suburban and rural networks,for public lighting and house connections.Laid on pillars and house fronts.
Technical Parameters:
| No.of cores x Nominal section area | Nominal Construction of conductor | Nominal Insulation thickness |
Nominal Overall diameter |
Nominal Cable weight |
Max.Resistance of conductor at 20ºC |
| No.X mm² | No.X mm | mm | mm | kg/km | <=(Ω/km) |
| Aerial Bundled Cables (Overhead Cables) 0.6/1kV | |||||
| 16 | 7/1.70 | 1.2 | 7.2 | 66 | 1.910 |
| 25 | 7/2.14 | 1.2 | 8.4 | 94 | 1.200 |
| 35 | 7/2.52 | 1.4 | 9.8 | 130 | 0.868 |
| 50 | 19/1.78 | 1.4 | 11.1 | 175 | 0.641 |
| 70 | 19/2.14 | 1.4 | 12.8 | 235 | 0.443 |
| 95 | 19/2.52 | 1.6 | 14.8 | 317 | 0.320 |
| 120 | 37/2.03 | 1.6 | 16.2 | 390 | 0.253 |
| 150 | 37/2.25 | 1.8 | 18.2 | 486 | 0.206 |
| 2X16 | 2X7/1.70 | 1.2 | 7.2 | 132 | 1.910 |
| 2X25 | 2X7/2.14 | 1.2 | 8.4 | 188 | 1.200 |
| 2X35 | 2X7/2.52 | 1.4 | 9.8 | 260 | 0.868 |
| 2X50 | 2X19/1.78 | 1.4 | 11.1 | 350 | 0.641 |
| 2X70 | 2X19/2.14 | 1.4 | 12.8 | 470 | 0.443 |
| 2X95 | 2X19/2.52 | 1.6 | 14.8 | 634 | 0.320 |
| 2X120 | 2X37/2.03 | 1.6 | 16.2 | 780 | 0.253 |
| 2X150 | 2X37/2.25 | 1.8 | 18.2 | 972 | 0.206 |
| 4X16 | 4X7/1.70 | 1.2 | 7.2 | 264 | 1.910 |
| 4X25 | 4X7/2.14 | 1.2 | 8.4 | 376 | 1.200 |
| 4X35 | 4X7/2.52 | 1.4 | 9.8 | 520 | 0.868 |
| 4X50 | 4X19/1.78 | 1.4 | 11.1 | 700 | 0.641 |
| 4X70 | 4X19/2.14 | 1.4 | 12.8 | 940 | 0.443 |
| 4X95 | 4X19/2.52 | 1.6 | 14.8 | 1268 | 0.320 |
| 4X120 | 4X37/2.03 | 1.6 | 16.2 | 1560 | 0.253 |
| 4X150 | 4X37/2.25 | 1.8 | 18.2 | 1944 | 0.206 |

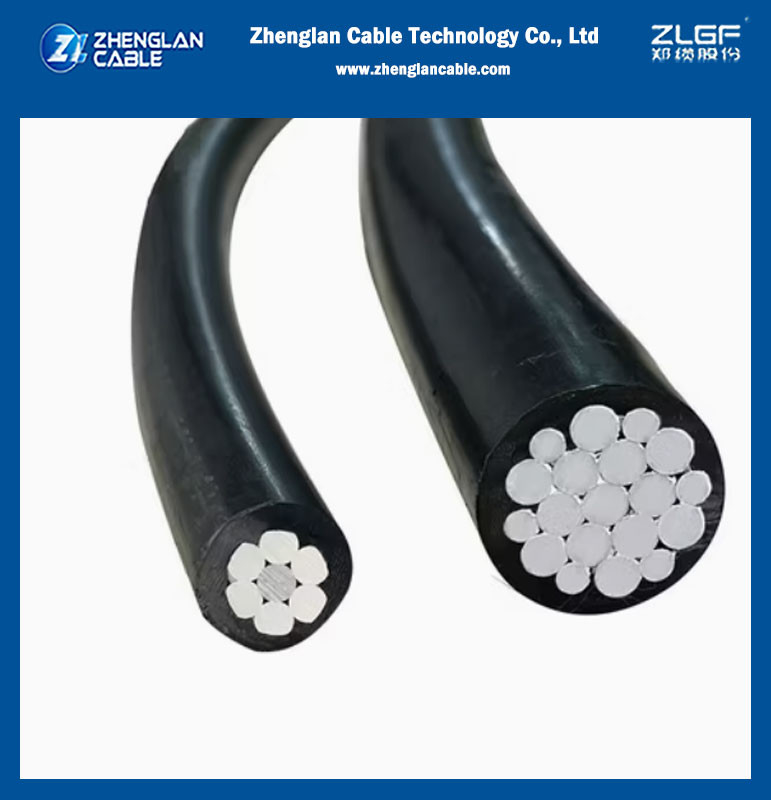

Product picture
About Zhenglan Cable Technology Co., Ltd
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.
