CCS Copper Clad Steel Conductor Wire 40% 30% Conductivity Copperweld ASTM B227

Name: CCS Copper Clad Steel Conductor Wire 40% 30% Conductivity Copperweld ASTM B227
Brand: Zhenglan Cable Technology Co., Ltd
SKU: CCS Copper Clad Steel Conductor Wire 40% 30% Conductivity Copperweld ASTM B227
Price: negotiable USD
Availability: InStock

Product Details

Place of Origin: Henan,China

Brand Name: NA

Certification: ISO

Model Number: CCS Copper Clad Steel Conductor Wire 40% 30% Conductivity Copperweld ASTM B227

Payment & Shipping Terms

Minimum Order Quantity: 5000

Price: 0.1-70USD/meter

Packaging Details: Wooden drum, Steel wooden drum, Coil, Box...

Delivery Time: 10-15days

Payment Terms: T/T, L/C

Supply Ability: 2000ton/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                    Copper Clad Steel Conductor Wire, ASTM B227 Conductor Wire


Port:	Qingdao, Tianjin, Shanghai	Application:	Electrical, Electronic, Grounding, Telecommunications, And Other Applications
Surface Treatment:	Annealed	Sample:	Free
MOQ:	5 000m	Conductivities:	21, 30, 40, And 70 %
Packing:	Wooden Drum, Steel Wooden Drum	Material:	Copper Clad Steel

Port:	Qingdao, Tianjin, Shanghai
Application:	Electrical, Electronic, Grounding, Telecommunications, And Other Applications
Surface Treatment:	Annealed
Sample:	Free
MOQ:	5 000m
Conductivities:	21, 30, 40, And 70 %
Packing:	Wooden Drum, Steel Wooden Drum
Material:	Copper Clad Steel

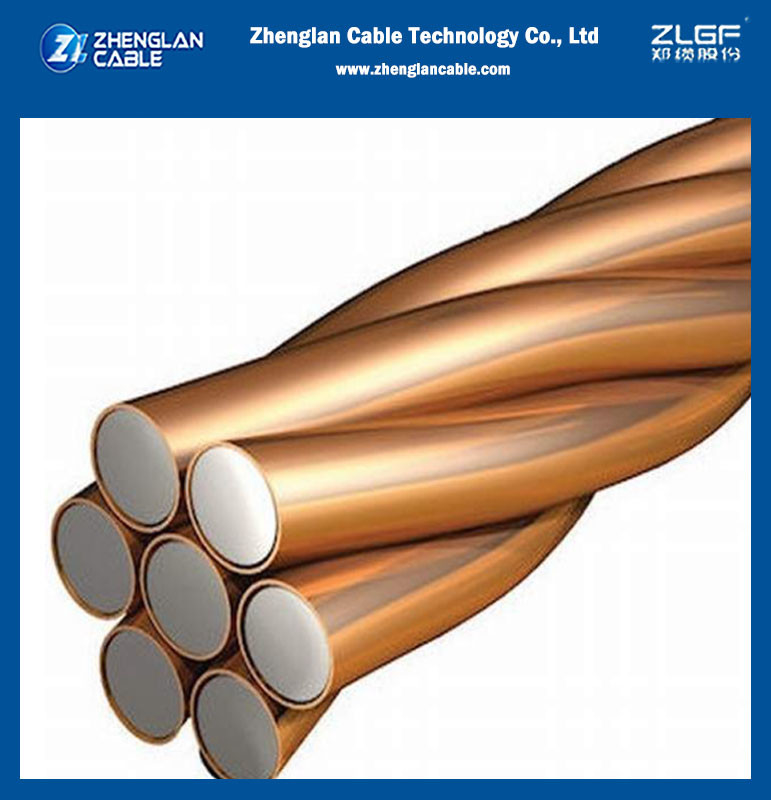

CCS Copper Clad Steel Conductor Wire 40% 30% Conductivity Copperweld ASTM B227

CCS Copper Clad Steel Conductor Wire 40% 30% Conductivity Copperweld ASTM B227

Product Description:

High Strength(HS) copper clad steel wire provides the same conductivity and corrosion resistance as copper while maintaining the high strength ofsteel. Frequently used for overhead ground wire and messenger wire, HS copper clad Steel Wire can resist mechanical damage caused during installation plus electrical damage during a fault condition. The core carbon steel is bonded with a uniform layer of oxygen-free copper cladding to ensure that the copper will not flake, crack or peel when the wire is twisted, installed or buried.

STANDARDS :

ASTM B193 - Standard Test Method for Resistivity of Electrical Conductor Materials

ASTM B227 - Standard Specification for Hard-Drawn Copperclad Steel Wire

ASTM B228 - Standard Specification for Concentric-Lay-Stranded Copperclad Steel Conductors

ASTM B258 - Standard Specification for Standard Nominal Diameters and Cross-Sectional Areas of AWG Sizes of Solid Round

ASTM B910 - Standard Specification for Annealed Copperclad Steel Wire

APPLICATIONS:

Copper clad steel wire and strand combines the electrical characteristics of copper with the mechanical properties of steel.Often used for buried ground grid systems ,overhead ground wire and messenger wire.it can resist mechanical damage during installation,as well as electrical damage during a fault condition. Copper clad steel has virtually no scrap value ,greatly reducing the potential of theft.

CCS Copper Clad Steel Conductor Wire 40% 30% Conductivity Copperweld ASTM B227 0

Technical Parameters:

Model	Nominal area	Wire quantity	Outer diameter		Weight/km		Pulling strength				20℃ Max resistance
Model	Nominal area	Wire quantity	Outer diameter		Weight/km		Pulling strength				20℃ Max resistance
	mm2		Monofilament	Conductor	Grade 30	Grade 40	Grade 40 LC	Grade 30 LC	Grade 40 HS	Grade 30 HS	Grade 40	Grade 30
	mm2		mm	mm	Kg/km		kgf				Ω/km
19 No.5	318.7	19	4.62	23.11	2634	2660.8	7823	8800	8800	9778	0.1442	0.1923
19 No.6	252.7	19	4.11	20.57	2087.8	2110.2	6205	6980	6980	7756	0.1818	0.2424
19 No.7	200.45	19	3.66	18.31	1656.3	1674.1	4923	5538	5538	6154	0.2294	0.3058
19 No. 8	158.96	19	3.26	16.31	1313.6	1327.4	3904	4392	4392	4880	0.289	0.3852
19 No. 9	126.06	19	2.91	14.53	1041.7	1052.5	3094	3481	3481	3868	0.3645	0.4862
7 No. 4	148.06	7	5.19	15.57	1218.6	1231.4	3636	4090	4090	4544	0.3093	0.4124
7 No. 5	117.41	7	4.62	13.87	966.4	976.5	2882	3242	3242	3603	0.3898	0.5197
7 No. 6	93.09	7	4.11	12.34	766.2	774.2	2286	2572	2572	2857	0.4915	0.6552
7 No.7	73.87	7	3.67	11	608	614.4	1814	2040	2040	2267	0.6201	0.8268
7 No. 8	58.56	7	3.26	9.78	482	487	1438	1618	1618	1798	0.7812	1.0414
7 No. 9	46.43	7	2.9	8.71	382.1	386.1	1140	1282	1282	1425	0.9859	1.3144
7 No. 10	36.82	7	2.59	7.77	303.1	306.2	904	1017	1017	1131	1.2422	1.6559
3 No. 5	50.32	3	4.62	9.96	413.4	417.7	1304	1467	1467	1630	0.9082	1.2104
3 No. 6	39.9	3	4.11	8.86	327.8	331.2	1034	1163	1163	1293	1.1447	1.526
3 No. 7	31.64	3	3.66	7.9	259.9	262.6	820	923	923	1026	1.444	1.925
3 N0. 8	25.09	3	3.26	7.04	206.1	208.3	651	732	732	813	1.8193	2.4253
3 No. 9	19.9	3	2.91	6.27	163.5	165.1	516	580	580	645	2.2957	3.0605
3 No. 10	15.78	3	2.59	5.59	129.6	130.9	409	460	460	511	2.8929	3.8552
3 No. 12	9.92	3	2.05	4.42	81.5	82.4	260	292	292	325	4.5573	6.0731

Copperweld steel conductor 6AWG(1/4.12mm) HS 40% conductivity Image:

CCS Copper Clad Steel Conductor Wire 40% 30% Conductivity Copperweld ASTM B227 1

CCS Copper Clad Steel Conductor Wire 40% 30% Conductivity Copperweld ASTM B227 2

Support and Services:

Copper Clad Steel technical support and services include:

Providing product information and technical support.
Assistance with product selection.
Guidance with product installation and maintenance.
Providing product training.
Safety inspections and testing.
Repair and replacement services.
Warranty services.

Why you choose us?

OEM/ODM services provided;
Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
Registered capital of $30 million and factory covers an area of 60,000㎡;
Advanced test equipment and procedures, 100% inspection before factory;
Enough stocks and the higest efficient shipping time guarranteed;
Professional pre-sales and after-sales services provided.
